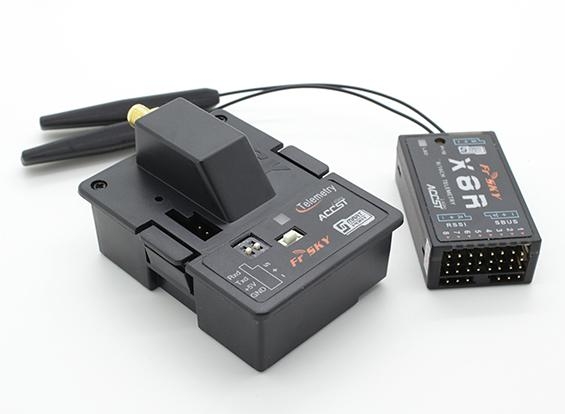

FrSky has just released their new 16 Channel X8R receiver with XJT module combo! (8 normal PWM outputs and all 16 channels on the dedicated S.BUS output)
FrSKY ACCST technology is proven, approved by many model associations, tested and reviewed as the leading Chinese 2.4Ghz R/C Technology. If you think DSM2 or FASST is the best, think again!
New FrSKY ACCST (Advanced Continuous Channel Shifting Technology) gives you secure radio communicatios in 2.4Ghz band. ACCST 2.4GHz system shifts 80 channels around hundred times per second in the 2.4GHz band. This means that the system is completely resistant to interference in that band.

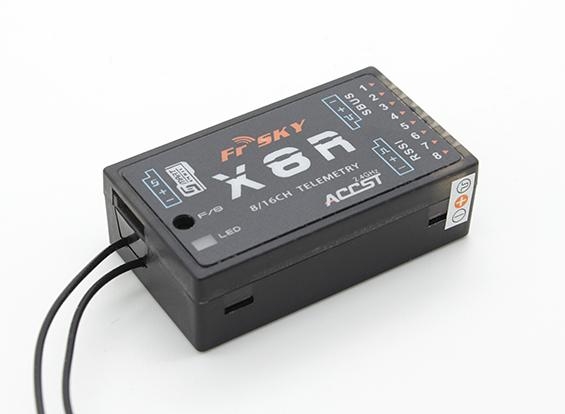

The X8R is in a Smaller package than previous 8 channel receivers, but has so much more capability. The new Smart Port supports the new hub-less sensors as well as the older hub analog sensors.
The X8R supports 8 standard servo outputs, and you can access all 16 channels by using the Sbus line with Sbus supported servos or use a FrSky S.BUS Decoder for the full 16 channels. Or you can use 2 X8R receivers in combination and the channels will sync 1-8 on the first and 9-16 on the second.
In this mode you only have access to 8 channels but you still get to use the new Smart Port and digital sensors! And even cooler is the new antenna design “PCB” it reports up to a 20% gain in range over their older antennas. And the X8R is Firmware Upgradeable!
Features:
• Advanced Continuous Channel Shifting Technology (ACCST) robust frequency agility
• Easy to bind and very fast link-up
• Excellent reboot time
• True Diversity with two antennas
• All channels can be programmed with Failsafe, quickly and easily
• Quick and extremely stable in performance
• Precise and smooth servo response
• Extended range (1.5km-2.5km)

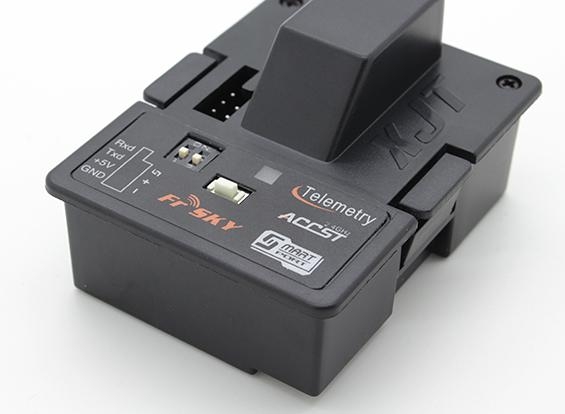

Module Specification:
Operating voltage: 6.0V-15.0V
Power consumption: 50mA
Output Power:: 100mW
Resolution: 3072 (11bit)
Dimensions: 63.9x48.5x36.5mm
Receiver Specification:
Dimension: 46.5mm x 27mm x 14.4mm (1.83" x 1.06" x .56")
Weight: 16.8g (.59 oz)
Operating Voltage Range: 4V-10.0V
Operating Current: 100mA@5V
Operating Range: >1.5km (Full Range)
RSSI output: analog voltage output (0~3.3V)
