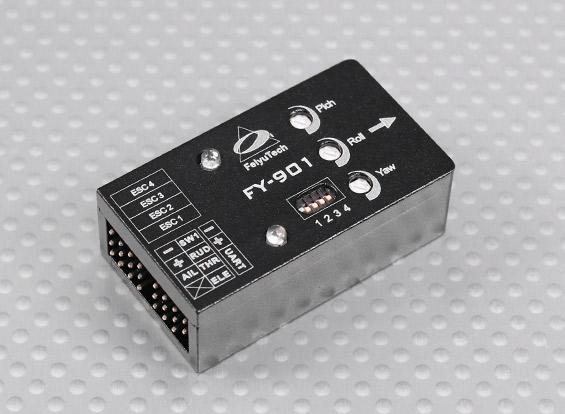

FY-901 is an inertial stabilization controller for your multi-rotor aircraft. Featuring both 3-axis gyro and 3-axis accelerometer stabilization, this multi-rotor controller is an advanced all-in-one solution for ultra stable multi-rotor flight!
The FY-901 offers two flight modes which can be remotely selected from the transmitter in flight:
Auto-Stabilization Mode: In this mode the FY-901 will utilize the 3-axis accelerometer to self-level the aircraft when the flight sticks are at their neutral position. This makes for a great aerial video platform!
Standard Mode/3D Control Mode: In this mode the device will utilize the 3-axis gyroscope to sense roll velocity and flight attitude. It will not self-level and will allow for more maneuverability for sport/3D flying.
This flight controller has outputs for up to 4 x ESCs. It will support both "X" and "+" configuration quadcopters as well as Y3 tricopters. The gyro gains are easily adjustable on the top of the unit, allowing for easy tuning to suit your flight preference.
Features:
• Easy installation
• 3-axis accelerometer and 3-axis gyro stabilization
• Self-leveling flight stabilization
• 2 flight modes selectable by transmitter
• Easy access gain adjustments for flight tuning
Specs:
Working Voltage: 5~6V
Stabilization: 3-axis gyro and 3-axis accelerometer
Flight Mode: 2 selectable by transmitter
Dimensions: 47x27x16mm
Weight: 26g

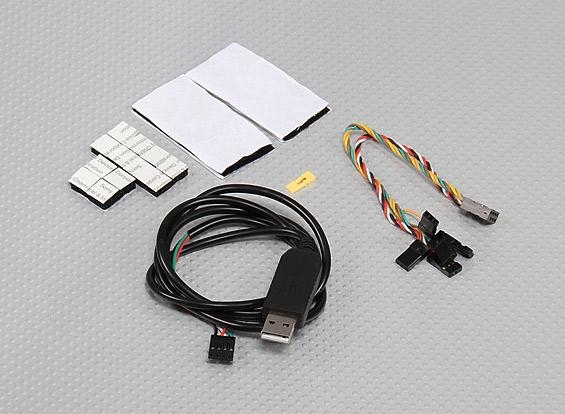

Includes:
FY-901 Flight Controller
USB connection cable
All required wire leads and mounting accessories
Non disp.
