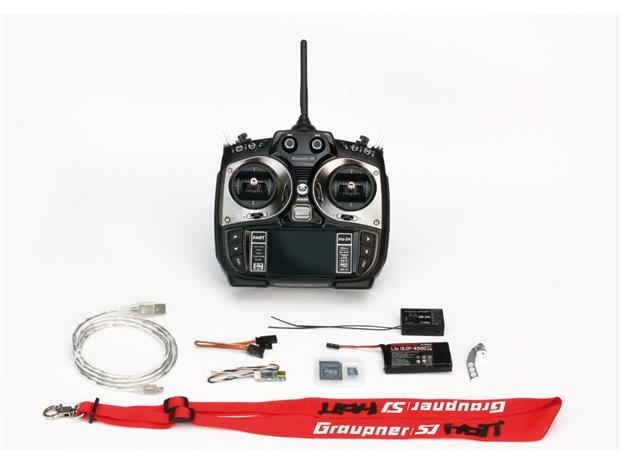

Combo Content
•MZ-24 Transmitter
•4000Mah LiPo Transmitter Battery
•Mains Charger
•GR-24L Receiver
•GR-12L Receiver
•4GB SD Card
•Neck Strap
•Transmitter Balancer
•PC Interface Cable
•Aluminium Transmitter Case

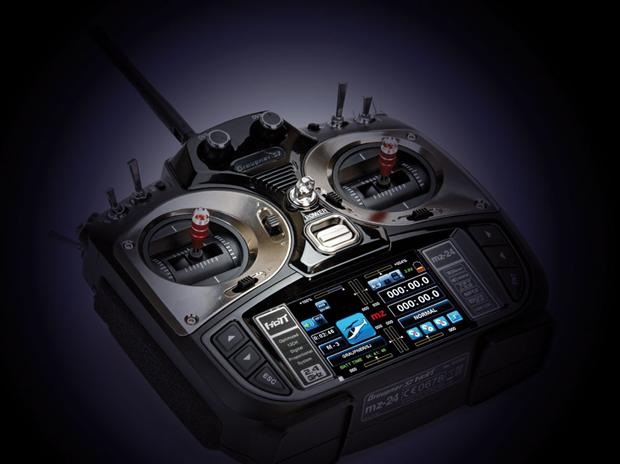

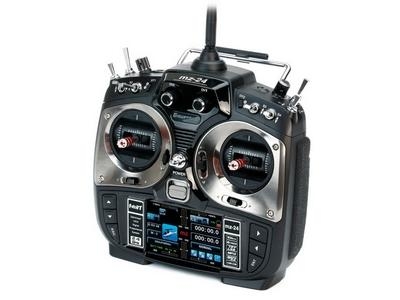

The MZ-24 puts the HOT in HOTT, leading the way in radio control technology. A beautiful styled radio incorporating a 3.5” colour, user friendly, touch screen display. Fully equipped with a 30 model memory, smart voice announcement, multi-binding system, and advanced HOTT wired or wireless trainer system. With Real Time Data Analysis (with optional sensors),it's a radio you will be proud of owning.
•12 Channels
•3.5" Colour touch screen for easy programming
•Smart voice announcement system
•Real-time telemetry data on screen with voice readout
•Wireless and wired trainer system with individual channel allocation
•4000mAH Li-Po battery and charger included
Graupner/SJ mz-24 HoTT 2.4GHz 12 Channel transmitter is designed with Graupner/SJ's unique telemetry technology that support Bi-directional data transmission gives user the real-time information. The use of up to 75 frequency hopping channels ensures extreme operating reliability and immunity to external interference. mz-24 has 30 model memories and it is suitable for any aircraft, Aditionally, with up to 12 available channels, built-in telemetry with data logging capabilities and 3.5" large TFT LCD with specialized touch pannel, mz-24 is the obvious choice for anyone who needs a high quality 12 channel radio.
Features
•HoTT (HOPPING TELEMETRY TRANSMISSION) bi-directional 2.4 GHz technology
•The use of up to 75 frequency hopping channels ensures extreme operating reliability and immunity to external interference.
•3.5" clolor TFT LCD with specialized touch pannel and user friendly interface
•Smart voice announcement system (Speaker and Earphone) for warnings and alrms at real time.
•Real-time data analysis with optional sensor (GPS, Fuel status, Temprature, Voltage, Current) and sensor board ( General air module, General engine module)
•Real-time telemetry analysis for Brushless Control Telemetry ESC such as PRM, consumption current, voltage, ESC temperature, Warning…
•Real-time telemetry analysis for Brushless Control Telemetry ESC such as PRM, consumption current, voltage, ESC temperature, Warnning…
•Advanced HoTT wired/ wireless trainer system
•Muti binding receiver system that 2 receivers can be connected in paralled to use additional servos
•High precision quad ball bearing gimbals( total 8ea ) lead the smooth and comfortable stick feeling
•Standard micro SD Memory cards to share model setup, expand model memory
•30 model memories
•Model copy function for model memories
•Staying up to date with the latest Graupner/SJ Firmware Programming options
•30 model memories available(Memory extension function, using SD card)
•6 Q. link function
•3 model type(Helicopter, Airplane, Glider)
•Helicopter Function
•Q.link function x 6
•6 Swash plate type(1 Servo, 2 Servo 180, 3 Servo 120, 3 Servo 140, 3 Servo(Elevator), 4 Servo 90)
•Pitch Curves(7-point)
•Throttle Curves(7-point)
•Pitch. Throttle Trim function x 6
•Swash Limit function
•Swash mix function
•Program mixing x 8 (Liner Program mixing x 5, Curve mixing x 3)
•Throttle mixing function(Aile-THRO, ELEV-THRO, RUDD-THRO)
•Airplane Function
•Q.link function x 6
•4 wing type(Including Delta wing type)
•3 Tail type
•Wing mixing (RUDD-AILE, AILE-RUDD, RUDD-ELEV)
•Throttle Curve function
•Program mixing x 8 (Liner Program mixing x 5, Curve mixing x 3)
•Snap roll function
•Aileron Diff function
•Flap MIX function(FLAP, AILE-FLAP, ELEV-FLAP, FLAP-ELEV)
•Flap sett function
•Airbrake function
•Idle Low function
•Glider Function
•Q.link function x 6
•14 wing type(Delta wing type included)
•3 tail type
•Wing mixing (RUDD-AILE, AILE-RUDD, RUDD-ELEV)
•Program mixing x 8(Liner Program mixing x 5, Curve mixing x 3)
•Aileron Diff function
•Flap MIX function(FLAP, AILE-FLAP-ELEV-FLAP, FLAP-ELEV)
•Flap sett function
•Butterfly function
