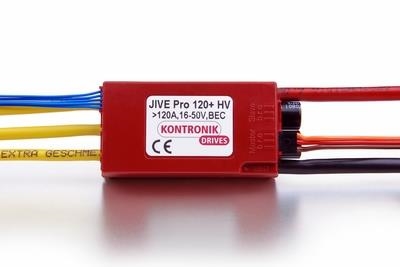

HELI JIVE pro 120 + HV

Name: HELI JIVE pro 120 + HV
SKU: K4635
Price: 469.00 EUR
Availability: InStock

Cod. K4635

Serie regolatori Jive KONTRONIK GmbH.

Una tecnologia avanzata che anticipa gli standard per il futuro.

the new JIVE with HV BEC, Logger & Telemetry - 5-12 Lipo, 16-50V, 120A Continous Power, BEC 5-8 V, 84g with Cable ...

- Il contenitore in poliammide a iniezione protegge il regolatore dagli urti e dagli spruzzi.
- La piastra raffreddante di dimensioni generose permette un ottimo raffreddamento che si può incrementare con un sistema ad aria o ad acqua. Per esempio la sigla 120+ significa che può sopportare almeno 120 A, che si possono raddoppiare con un raffreddamento extra.
- Il BEC particolarmente potente, regolabile da 5 a 6 V, fornisce una corrente continua di 5 A con un massimo di 15 A utilizzabili solo con un secondo cavo opzionale. Tutto questo fino a 12 elementi LiPo (16-50 V), ovviamente sempre con la massima affidabilità!
- Il software molto potente e continuamente aggiornabile, sopporta tutti i motori e informa se è stato usato al limite delle sue possibilità per dare modo di prevenire possibili problemi qualora si insistesse in questa situazione.
La confezione comprende il cavetto slave supplementare con toroide + dissipatore in alluminio-

Dati tecnici :

Dimensioni: 21x32x108 mm (esclusi i condensatori)
Peso: 140 g (cavi compresi) - 108 g (senza cavi)
Corrente in uso continuo: 120 A - può raddoppiare con adeguato raffreddamento
Frequenza: 8-32 kHz
Alimentazione : 5-12 elem. LiPo (16-50 V)

BEC: Incluso da 5 A - fino a 15 A con cavo opzionale

Name well known – product totally - new Arrived at the future

At first glance, the new JIVE Pro looks characteristically like the JIVEs you know and trust. As we all know, looks can be deceiving.

The JIVE Pro is based upon the KOSMIK processor with many new features, and a brand new chipset that will power you into the future.

The new HV BEC of the JIVE Pro can provide power to some of the most demanding servos available when running 8 V and up to 12 S batteries.

Available in both 80 A and 120 A versions, the JIVE Pro offers programming for all types of models including airplanes, helicopters, boats and RC cars.

An exciting feature of the JIVE Pro is the addition of a module port that will allow it to accept and use all KOSMIK modules. For a logging function, the new LogTel module was develloped. It allows to have both functions, logging and telemetry, in one device.

The original JIVE set industry standards with its outstanding RPM control and reliable performance. Building upon this heritage, the JIVE Pro is the next evolution of perfection. With the ability to supply power at a speed that surpasses even the original JIVE, the RPM control provided by the new JIVE Pro will astound you. The JIVE Pro is equipped with a new chipset, which provides a greater sensitivity to power demands and removes any noticeable head speed variability. With a new chipset, advanced algorithms, and the flexibility of the sensor port, the JIVE Pro becomes the new standard for all 80-120 A electronic speed controllers.

For Scale Helicopter Pilots, imagine being able to spool up to takeoff head speed over a full minute. Creating a new world of opportunity for scale pilots, the JIVE Pro will allow you to program your startup rate to a full 60 seconds.

As the JIVE Pro will provide all helicopter features, there will be no continued need for a helicopter specific ESC such as the HELI JIVE. The JIVE Pro will meet the demands of all types of aircraft, by simply activating the desired features and will become the new leader in the 80-120 A ESC market.

Off course the new JIVE Pro ESCs include an integrated anti spark function.
