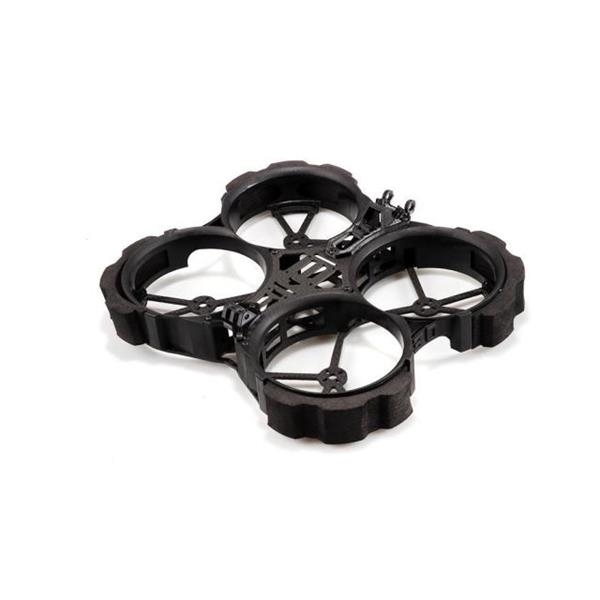

HGLRC Veyron25CR 2.5 Inches Cinewhoop Indoor FPV Frame

Feature:
*Supports (20x20-25.5x25.5) mounting holes
*Supports both AIO/stack installing at the same time.Epuipped with 1404 Aeolus motors, ultra-light weight and have a super long flight time.
*Using mold EVA protecting ducts,super durable.

Brand:HGLRC
Model:Veyron25CR Cinewhoop Frame
Material:3K carbon fiber
Type:2.5 inches Frame
Wheelbase:120mm
Size:187*164mm
Top plate:1.5mm
Bottom plate:2mm
Space:25mm
Flight control mounting hole:20x20mm/25.5x25.5mm
Support camera:19*19mm
Weight:82g

Motor mounting holes:∅9-12

Shipping list:
1x 1.5mm top plate
1x 2mm bottom plate
2x Mold Ducts
4x protection half EVA Foam
1x 4P cable
1x Type C female
1x Type C male
1x Micro male
1x round head screw M5*20
4x round head screws M3*25
1x round head screw M3*20
4x round head screws M2*20
8x cup head screws M2*7
14x round head screws M2*6
2x round head screws M2*4
4x Round head screw M2*5
2x M2*8 Nylon columns
1x M5 self-locking nut
5x M3 self-locking nuts
4x M2 self-locking nuts
4x M3*8 shock absorbing balls
4x M2*4 shock absorption columns
2x battery straps 15x200mm
1x battery non-slip pad
1x TPU GoPro fixing mount
1x TPU naked GoPro fixing mount
1x TPU antenna base
1x TPU black LED fixing mount
1x TPU black landing protector

Recommended parts:(not included)
Flight control:Zeus25/F722 MINI
Motor:14XX/16XX/18XX
ESC:Zeus25A-40A
Camera:19X19mm
Propeller:2.5 inches
Battery:4S 450mAh 650mAh
