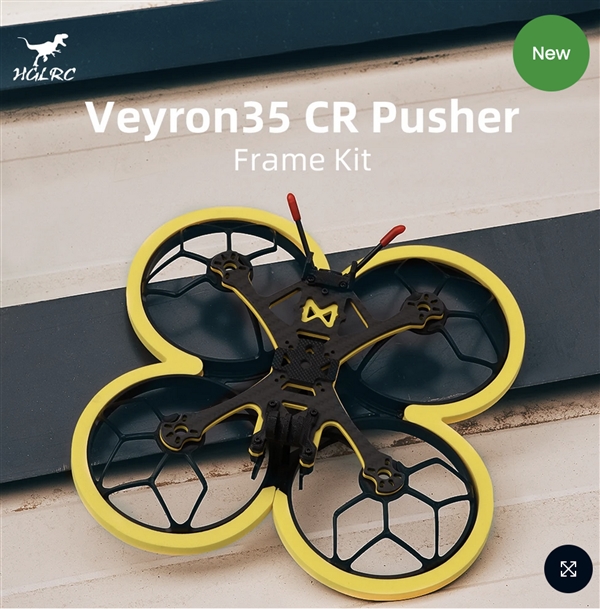

HGLRC Veyron35CR 3.5 Inches Pusher Cinewhoop frame
Features:
*Inverted 3.5-inch propeller guard design,long flight time, easily supporting a complete GoPro
*Mold propeller guard combined with EVA foam protection, safe and durable
Brand Name: HGLRC
Model: Veyron35CR Pusher frame
Material: 3K carbon fiber
Type:3.5 inch frame
Wheelbase: 155mm
Size:131*131mm
Top plate: 2.5mm
mid plate: 2.5mm
Base plate: 1.5mm
Space: 28mm
FC mounting hole: 20x20mm/25.5x25.5mm
Supported camera:19*19mm
Motor mounting hole:12*4/16*4mm
Weight: 113.4g

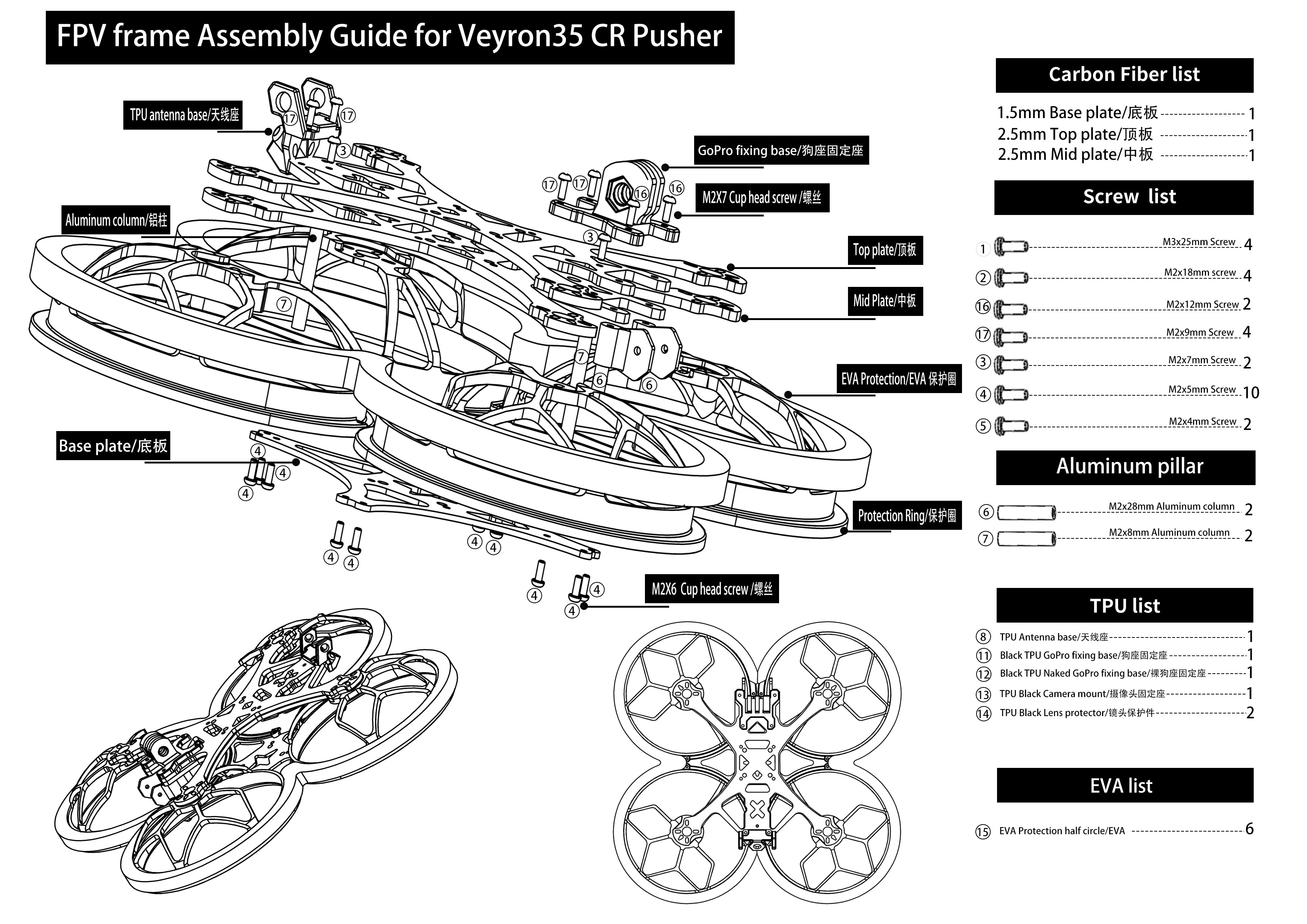

Shipping list:
1x 2.5mm top plate
1x 2.5mm Mid plate
1x 1.5mm base plate
4x 3.5 inch propeller guard
6x EVA Foam protection guard (2 black, 2 gray, 2 yellow)
1x EVA landing gear
2x M2*28mm black mesh Aluminum pillar
2x M2*8mm black Aluminum column
1x screw M5*20
4x screw M3*25
1x screw M3*20
4x screw M2*18
4x screw M2*9
2x screw M2*7
10x screw M2*5
2x screw M2*4
1x M5 self-locking nut
5x M3 self-locking nuts
4x M2 self-locking nuts
4x M3*8 shock absorbing ball
4x M2*O type shock absorbing ring
2x battery tie 15x200mm
1x battery non-slip mat
1x TPU GOPRO seat holder
1x TPU bare GOPRO holder
1x TPU antenna base
1x TPU camera mount
1x TPU lens protector
Recommended parts:(not included)
Flight controller: Zeus35 PRO/F722 MINI
Motor:1 8XX/20XX/21XX
ESC: Zeus25A-45A
Camera: 19X19mm
Propeller:3.5 inches
Battery: 4S/6S 1000mAh-1300mAh
