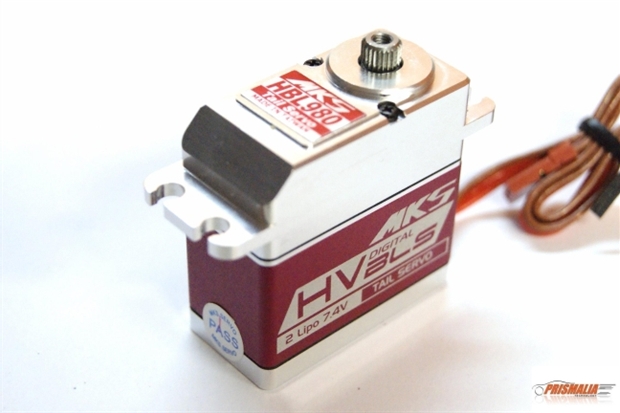

HIGH VOLTAGE-BRUSHLESS SERVO modello HBL980 (Aluminium case)

HBL980 Aluminium case-metal gear

Tail servo

Working frequence:

760μs / 560hz

Operating Voltage:

6.0 ~7.4 V DC Volts

Operating Speed (6.0V):

0.040 sec/60° degrees at no load

Operating Speed (7.4V):

0.036 sec/60° degrees at no load

Stall Torque (6.0V):

4.5 kg.cm

Stall Torque (7.4V):

5.6 kg.cm

Motor Type:

Brushless Motor

Bearing Type:

2BB

Gear Type:

Metal Gears

Dimensions:

40X20X40 mm

Weight:

70.29 g
