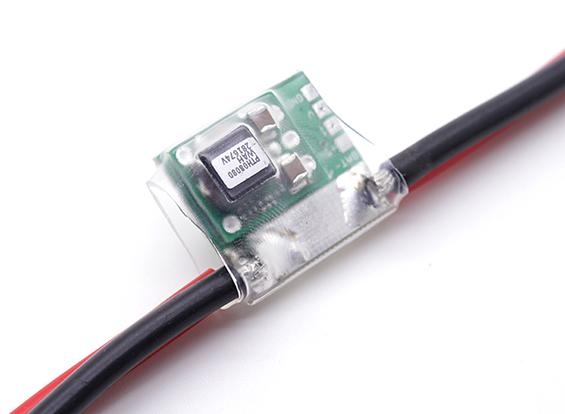

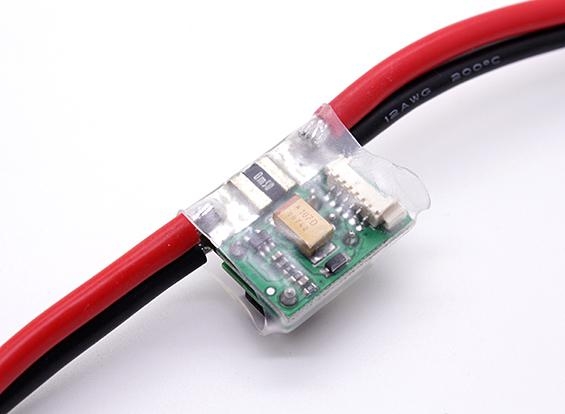

The HKPilot 2.5 Power Module incorporates both a way to power your HKPilot and accessories and report battery voltage and current to the HKPilot, this can be viewed in the HKPilot's stored logs or live with a telemetry radio. All thru a single and tightly included 6-pin cable that directly matches the HKPilot's connector. The on-board switching regulator outputs 5.3V at a maximum of 2.25A, and can be used up to 18 Volts (4S LiPo) and at a maximum of 90 amps. The Power Module is ready to use with XT60 connectors pre-fitted, and shrink wrapped for protection.
Note: The Power Module is rated at 2.25 Amps to power the HKPilot, receiver and peripherals (GPS and Telemetry radio) ONLY. To power servos use an ESC with an adequate BEC or a standalone BEC plugged into the output bus, and remove jumper 1 to isolate the two power lines.
Specifications:
Max input voltage: 18V
Max current sensing:90A
Switching regulator outputs: 5.3V at 2.25A max
6-pos Molex cable plugs directly to HKPilot
Voltage and current measurement configured for 5V ADC

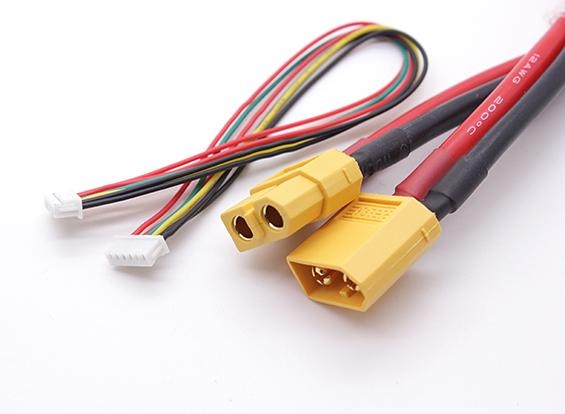

Includes:
DF13 6 Position Connector 150mm long
HKPilot Power Module with XT60 Connectors
