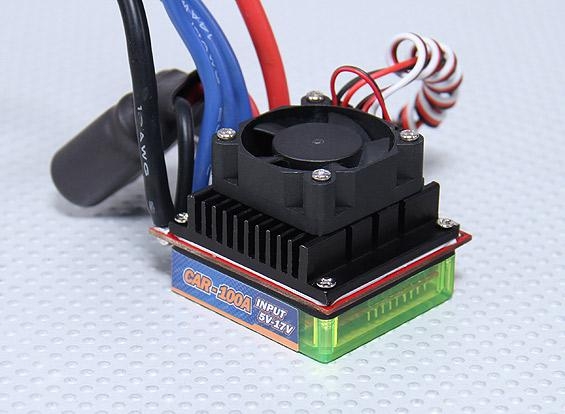

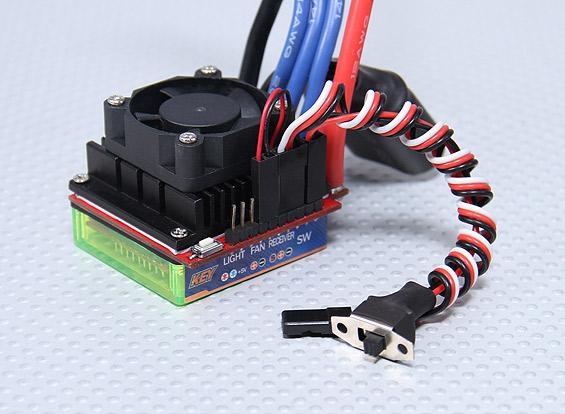

Hobby King upgrade version ESC provide more power support to the MCU, resulting better throttle response and high speed performance.Also software upgrade gives better startup effect and support different type of motors.
Features:
Full protection feature including low voltage, over-heat, throttle signal lost, startup
protection and self-check.
Compatible with sensorless brushless motor.
Excellent startup performance, linear and quick throttle response.
Supports highest motor speed 240,000RPM(2 poles), 80,000RPM(6 poles) and 40,000(12 poles).
Easy to configure with program card.
System can automatically detect throttle neutral point, and neutral range is adjustable.
Three work modes for different environments.
4 step reverse force adjustment
5 step start force adjustment.
3 step brake force adjustment
5 step drag brake force adjustment,
4 step initial brake force adjustment.
Specification:
Input voltage: 5V-17V (support 2-4S lithium batteries)
Cont. Current: 100A
BEC output: 3A /5.5V (switch)
Size( length X width X high): 47x41x29mm
Weight: 95g
Non disp.
