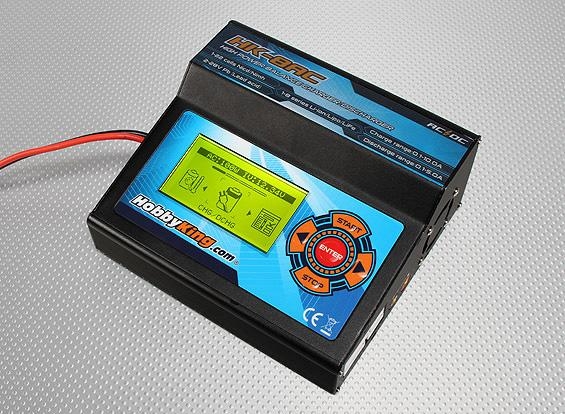

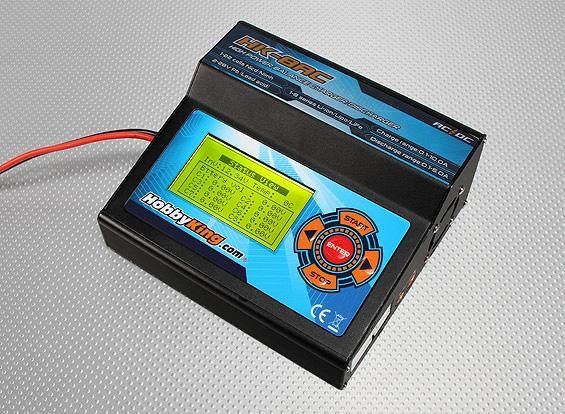

A break through in battery charging convenience and style, the HobbyKing 8AC offers a large easy to read LCD panel with a graphical user interface (GUI). A host of smart charging options and valuable information is at your finger tips, all of which is displayed on a crisp back lit LCD panel. The GUI makes navigating the chargers array of options a breeze. With real time charge data graphing, timer charging, variable capacity charging, temperature cut-off, timer cut-off and a host of other user options and programmable features this may very will be the last charger you will ever need!
Features:
Microprocessor controlled
Dual Power (AC/DC)
Li-Po/Li-FE/Li-Ion/Ni-Cad/Ni-Mh/Pb
Variable Capacity Charge function
Time limit function
Temperature Cut off (Requires option temp probe)
Input voltage monitoring. (Protects car batteries at the field)
Battery Data Memory (Store up to 10 packs in memory)
Battery break in and cycling.
Spec.
Voltage Range DC: 11.0 ~ 18.0V
Voltage Range AC: 180~240V (50/60Hz)
Circuit power: AC 120W / DC 180W
Charge current: 0.1 ~ 10.0A
Discharge current: 0.1 ~ 5.0A
NiCd/NiMH battery cell count: 1~ 22 cell
Lithium battery cell count: 1~8 Cell
Pb battery voltage: 2~28V
Battery data memory: 10 memories per program
Battery capacity range: 100~65000mAh
Delta Peak Sensitivity: Disable/Delicate/5~200mV adjustable
Temperature cut-off range: 20~80C/68~176F
Trickle charge current: Off, 50~300mA adjustable (N/A for Lixx)
Cycle count: 1~10 times (N/A for Lixx)
Cycle cool-off waste time: 0~60 minutes adjustable
Current drain for balancing Lixx: 200mAh/cell
