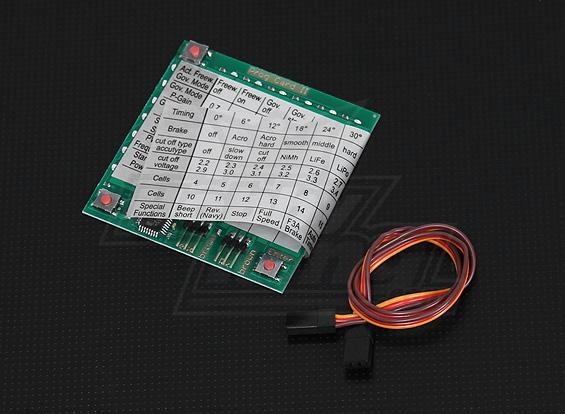

This is the programming card for the Hobbyking HeliDrive ESCs. This card will allow you to conveniently program your ESC settings at home or at the field. Its compact size allows it to be stored in your field box or pocket with ease.

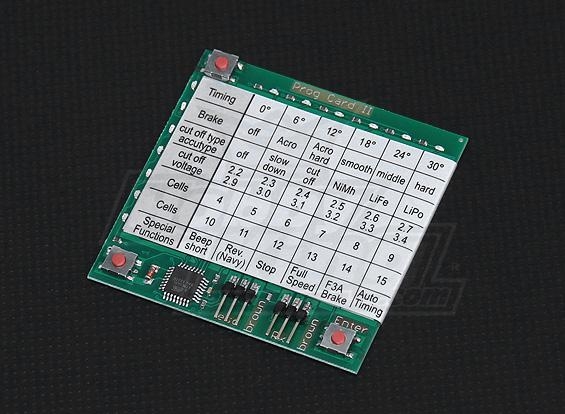

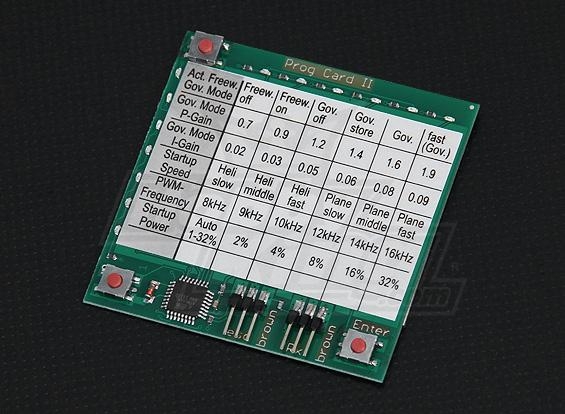

Programming Options:
• Active free-wheeling circuit mode: Freew. off/Freew. on
• Govenor mode: Gov. off/Gov. store/Gov./fast Gov.
• Govenor mode P-gain: 0.7/0.9/1.2/1.4/1.6/1.9
• Govenor mode I-gain: 0.02/0.03/0.05/0.06/0.08/0.09
• Startup speed: Heli slow/Heli middle/Heli fast/Plane slow/Plane middle/Plane fast
• PWM frequency: 8kHz/9kHz/10kHz/12kHz/14kHz/16kHz
• Start-up power: Auto 1~32%/2%/4%/8%/16%/32%
• Motor timing: 0°/6°/12°/18°/24°/30°
• Brake: off/Acro/Acro hard/smooth/middle/hard
• Cut-off type: off/slow down/cut-off/NiMh/LiFe/LiPo
• Cut-off voltage (LiFe mode): 2.2/2.3/2.4/2.5/2.6/2.7
• Cut-off voltage (LiPo mode): 2.9/3.0/3.1/3.2/3.3/3.4
• Cells: 4/5/6/7/8/9
• Cells: 10/11/12/13/14/15
• Special functions: Beep short/Rev./Stop/Full speed/F3A brake/Auto timing
*Note: This programming card only works with the Hobbyking HeliDrive ESCs (45A/80A/100A/120A HV)
