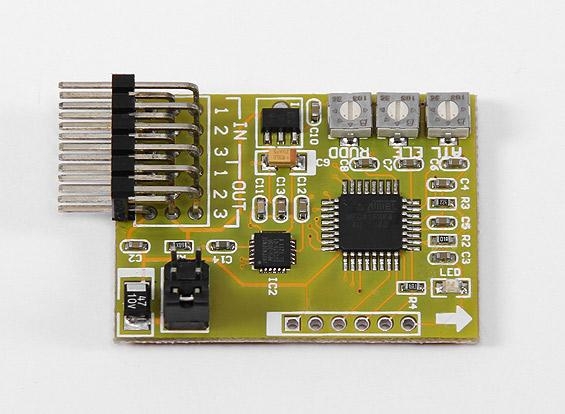

Controlled by an Atmel Mega168PA 8-Bit RISC based micro controller and utilizing a single high precision 3-axis MEMS gyro, the Hobbyking i86AP Flight Stabilization Control Board is capable of stabilizing flight on just about any fixed wing aircraft! It provides added stability by automatically correcting the aileron, elevator and rudder channels in flight. This compensates for unwanted changes in the airplane's attitude due to wind and other factors.

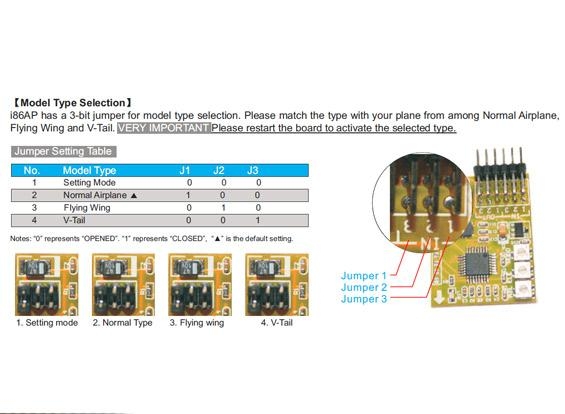

It supports normal, flying wing (delta) and v-tail aircraft. The mode can be easily selected by changing the on-board jumper to whichever aircraft type that you need.
Light weight and compact the i86AP can fit in the smallest of aircraft and includes a small piece of double sided tape to install.
Features:

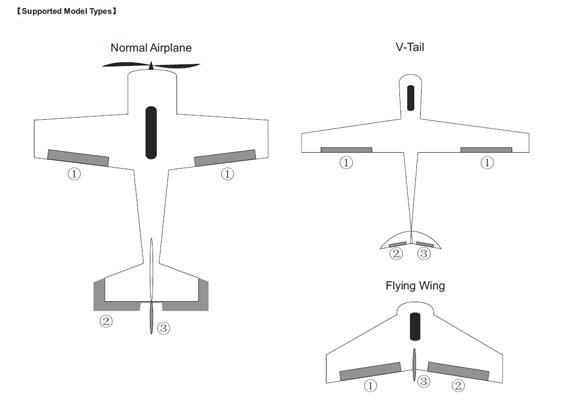

Supports normal, flying wing (delta) and v-tail aircraft, easily selectable by on-board jumper
Supports 3D flight without undermining stability

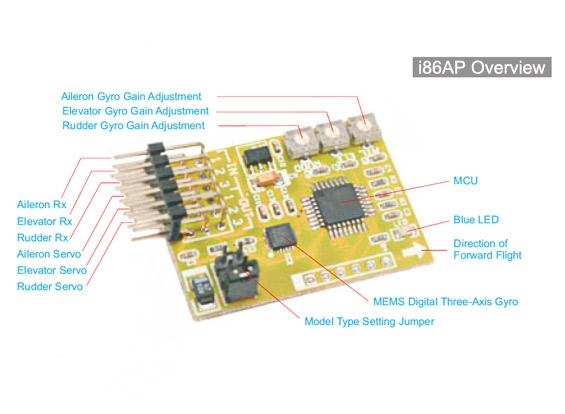

Independent gyro gain adjustment for aileron, elevator and rudder
Basic setting functions including stick centering and gyro reversing
Compact and light weight design allows for mounting in the smallest of aircraft
Specs:
Input Voltage: 4v to 6v DC
PWM Output: 50Hz, 1020-2020us
Gyro scale: +/- 1000dps
Gyro sample rate: 1KHz
Operating temp: -40° C to 85° C
Size: 30mm x 40mm
Weight: 8g
Required:
3 x male to male servo lead for connecting receiver to control board
*Note: User manual located under the "files" tab below.
