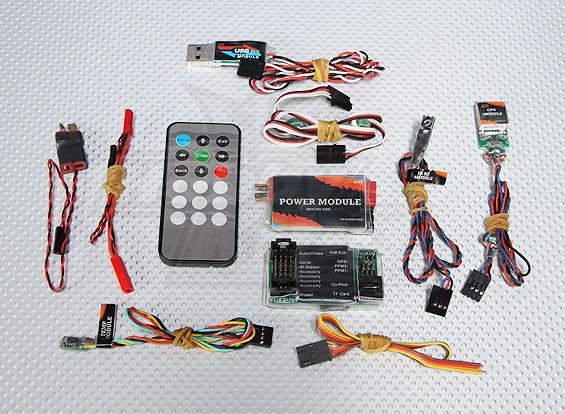

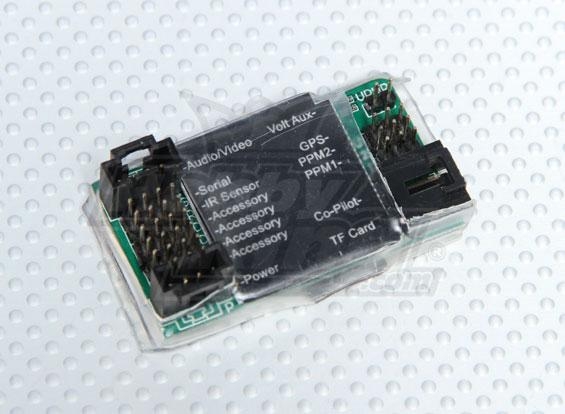

Hobbyking OSD System Combo: Main Board, Power Module, USB/GPS/IR/TEMP Modules w/Remote
The HobbyKing OSD Combo is a quick and easy way to add a wealth of on screen information to your FPV system. With GPS coordinates, airspeed, voltmeter, temperature, and many more display functions this OSD unit will make a great addition to any FPV setup at a fraction of the cost of other GPS OSD systems currently available. It even includes an IR sensor and remote control for wireless function control.
An excellent new feature of this system is the "home direction" indicator which works as follows:
"If more than 10KM/H or equivalent in MPH speed is measured by the GPS for not less
than half of a second, the system will switch the operating mode from “Landed” mode to
“Taken-Off” mode. The system will always compare between the current position
coordinate and the position measured in “Landed” mode, and calculate the “Home
Direction”, hence advises the pilot where the plane took off referencing to the current flying
heading. If you are lost during the flight, you may always fly back to the take-off
location by the referencing of home direction arrow."
OSD Display Features:
Timer
Date
Temperature
Power battery voltage
Power battery gauge
Power battery current
Power battery consumed energy
GPS status
Position Coordinate
Main Sea Level Altitude
Compass
Direction heading
Home direction
Relative altitude
Altitude scale
Climb rate
Maximum altitude reached
Distance to home
Speed scale
Speed reading
Auxiliary voltage status
Horizontal datum
Flight recorder status
Specs.
Weight: Main board - 17g / Power module - 23g
Dimensions: Main board - 60x18x34 / Power module - 57x13x31
