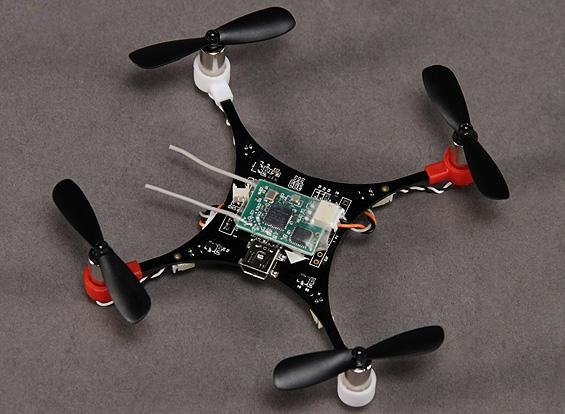

The HobbyKing Pocket Quad truly is an ultra-micro quadcopter unlike any other! Measuring just 70mm across and weighing in at only 30g, the Pocket Quad redefines the term "ultra-micro".

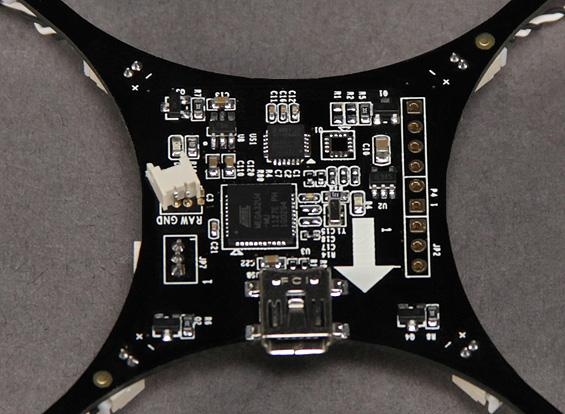

This is the World's first MultiWii based micro quad frame offered in a plug and fly configuration. The frame features an integrated MultiWii flight controller powered by an Atmega32u4 processor and MPU-6050 combined Gyro/Accelerometer chip providing the ultimate in programmable flight control. All flight control parameters can be changed quickly and easily with the MultiWii GUI software.
The all new Pocket Quad V1.1 now features removable plastic motor mounts which allow you to easily remove the motors at anytime. This also makes this ultra-micro quadcopter more durable in a crash.
This package not only includes the Pocket Quad frame with integrated MultiWii flight controller, it also includes 4 x micro motors, 4 x propellers, 2 x 3.7V 250mAh lipoly batteries, USB charger and a DSM2 satellite receiver. This means that you will only need to add your own DSM2 compatible transmitter to get this quad flying!
*Note: The Pocket Quad requires assembly. It is not ready to fly out of the box, though all necessary components are included for use with any 4CH or more DSM2 transmitter.
Features:
• Ultra-micro size
• DSM2 compatible
• V1.1 adds removable plastic motor mounts
• Integrated MultiWii flight controller
• Atmega32u4 processor
• MPU-6050 Gyro/Acc chip
Specs:
CPU Speed: 16MHz
Flash Size: 32kB (3.3kB taken by the Bootloader)
Inputs: 5 high-res RX inputs (1 x AUX channel)
PPM Receiver Support: Yes
DSM2 Satellite Support: Yes (included)
Propeller Size: 45mm (included)
Dimensions: 70x70x9mm
Weight: 30g (w/receiver and battery)

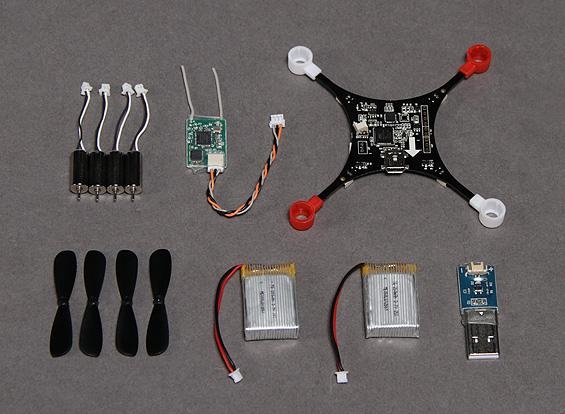

Included:
Pocket Quad frame
DSM2 satellite receiver
7mm high speed coreless motor x 4
3.7V 250mAh lipoly battery x 2
45mm propeller x 4
USB charger
Required:
Your own 4CH DSM2 transmitter
