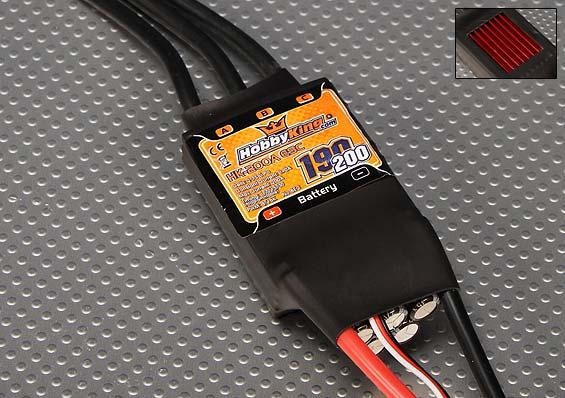

Hobbyking SS Series 190-200A ESC

Name: Hobbyking SS Series 190-200A ESC
SKU: HK-SS200ALV
Price: 49.99 EUR
Availability: OutOfStock

Cod. HK-SS200ALV

The Hobbyking SS series comes with a limited range of programming functions and are designed to be plug-n-play.
A perfect for those looking for something simple to use and economic.

Spec.
Weight: 85g
Size: 70x50x13mm
Cells: 2-7S Li Po
Max Current: 190A
Burst : 200A
No BEC
Timing: 1/7/15/30 programmable
PWM: 8/16K

Features.

Constant current 190A Max 200A <10S

Li-Poly 2-7 cells

Dynamic Braking

BEC: opto

Auto shut down when lose signal

Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V NiMh

User Programming options.

Battery settimg

Throttle Rnage

Brake settimg 4 options:

Direction and Cutoff Type

Timing Mode Setting: 1 / 7 / 15 / 30

PWM setting: 8K/16K

Note:

This is OPTO, with no BEC supplying power to your receiver. You will need an extra power source for your receiver. (such as UBEC or battery pack)
If you hear the music tone repeat for more than 3 times, you may need to check your power source to the receiver.
