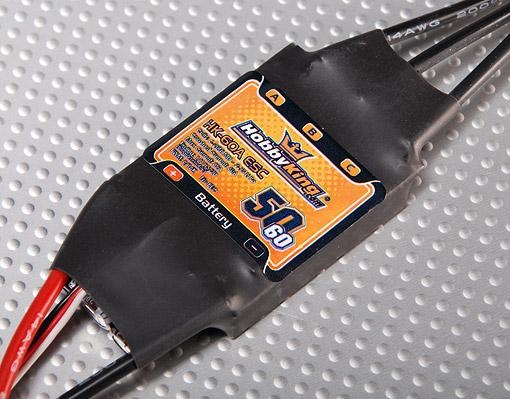

Hobbyking SS Series 50-60A ESC

The Hobbyking SS series comes with a limited range of programming functions and are designed to be plug-n-play.
A perfect ESC for those looking for something simple to use and economic.

Spec.
Weight: 63g
Size: 55x35x8mm
Cells: 6-20Ni MH ~ 2-7S Li Po
Max Current: 50A
Burst: 60A
No BEC
Timing: 1/7/15/30 programmable
PWM: 8/16K

Features.

Constant current 50A Max 60A <10S
Li-Poly 2-7 cells Ni-MH 6-20 cells
Low Resistant 0.0014 Ohms;
Dynamic Braking
BEC: opto
Auto shut down when lose signal
Slow down at 3.0V per cell Lipo, Cut-off at 2.9V per cell Lipo 0.8V NiMh

User Programming options:

Battery settimg
Throttle Range
Brake setting 4 options:

Direction and Cutoff Type
Timing Mode Setting: 1 / 7 / 15 / 30
PWM setting: 8K/16K
