An extremely powerful brushless system for any 1/10 or 1/12 scale truck, car or buggy, the Hobbyking X-Car series offers high performance and great value in an easy to use combo package. With this system, the motor and ESC are matched for best performance which saves you the hassle of choosing separate components yourself. Simply solder on your favorite connectors, install a pinion gear and your ready to run!
Features:
ESC
• Enhanced throttle response, precise throttle linearity, excellent acceleration and strong brakes
• Programmable with the Hobbyking X-Car programming card to make adjustments. (included)
• Automatically detects the number of cells within the battery pack.
• Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection and motor blocked protection.
• Compatible with NOVAK, LRP and ORION Sensored brushless motor.
Motor
• High quality anodized CNC finish.
• Adjustable timing allows for fine tuning.
• Sensored operation ensures smooth startups and acceleration.
• Large cooling holes to keep temperature low.
• High efficiency operation.
ESC Specs:
Continuous Current: 100A
Burst Current: 760A
Resistance: 0.0003ohm
Suitable Car: 1/10, 1/12 on and off road.
Battery: 2-3 cells Lipo (5-9 cells NI-xx)
BEC output: 6V/3A switch mode buit-in
Motor type: Sensorless and sensored brushless motors
Running mode: Forward only or forward with reverse (user programmable mode)
Dimension: 43 x 40 x 34mm
Weight: 112g

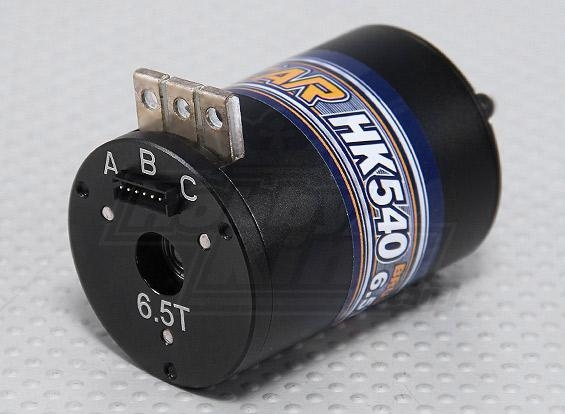

Motor Specs:
Model: 3650 Sensored
Kv: 5200
Scale: 1/10, 1/12
Turns: 6.5T
Weight: 171g
Diameter: 36mm
Length: 52.5mm
Shaft Diameter: 3.17mm

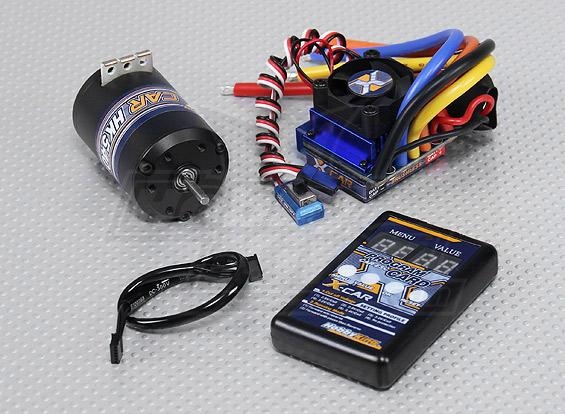

Includes:
100A Sensorless/Sensored Brushless ESC
3650 6.5T (5200Kv) Brushless Motor

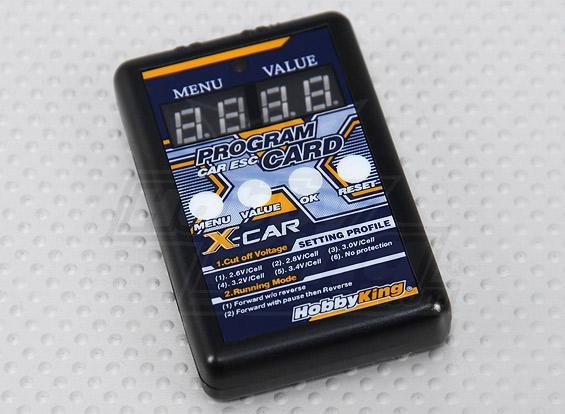

Hobbyking X-Car Programming Card
Sensor Cable
