Capable of handling up to 250W or 10A charge rates. Lipoly, LiFe and Lilo compatible as well as able to charge up to 6 cell packs.
The iCharger is famous for its ultra-accurate balancing feature. Each unit is calibrated at the factory prior to shipping!
This is a quality precision charger.
Spec.
Input voltage range : 10.0 – 18.0VDC
Charge current range : 0.05 – 10.0A
Discharge current range : 0.05 – 7.0A
Maximum charge power capacity : 250W @ input voltage > 13.5V
Maximum discharge power capacity : 20W
Maximum extern discharge power capacity : 170W @ 20V/7A
Current drain for balancing : <300mA
Balance accuracy : <10mV
Lithium (LiPo/LiIo/LiFe) battery cell count : 1 – 6 series
NiCd/NiMH battery cell count : 1 – 17 series
Pb battery cell count : 1 – 12 series (2 – 24V)
Battery setup memories : 10
Intelligent temperature control : Yes
PC Connect : USB port
Weight : 350g
Dimensions (L X W X D) : 134X83X25mm

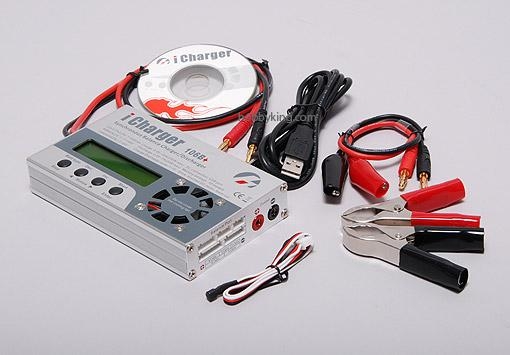

Included.
106B Balance Charger/Discharger
2 Aligator clips
Banana leads
Temp Probe
CD
Note: Power supply not included.
