Capable of handling up to 350W or 20A charge rates. Lipoly, LiFe and Lilo compatible as well as able to charge up to 8 cell packs.
The iCharger is famous for its ultra-accurate balancing feature. Each unit is calibrated at the factory prior to shipping!
This is a quality precision charger.
Spec.
Input voltage range: 4.5 32.0VDC
Charge current range: 0.05 20.0A
Discharge current range: 0.05 20.0A
Maximum charge power capacity: 350W @ input voltage > 18V
Maximum discharge power capacity: 30W
Maximum extern discharge power capacity: 600W @ 30V/20A
Current drain for balancing: <350mA
Balance accuracy: <10mV
Lithium (LiPo/LiIo/LiFe) battery cell count: 1 8 series (In non-balance mode, expand LiFe to 10s)
NiCd/NiMH battery cell count: 1 25 series
Pb battery cell count: 1 18 series (2 36V)
Log Files storage: 16Mbit (36 hours)
Battery setup memories: 10
Intelligent temperature control: Yes
PC Connect: USB port
Weight: 420g
Dimensions (L X W X D): 143 x 97 x 26mm (5.63 x 3.82 x 1.02in)

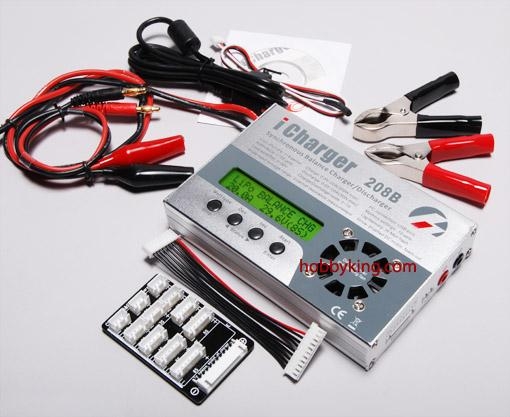

Included.
208B Balance Charger/Discharger
2 Aligator clips
Banana leads
Temp Probe
CD
Note: Power supply not included.
Non disp.
