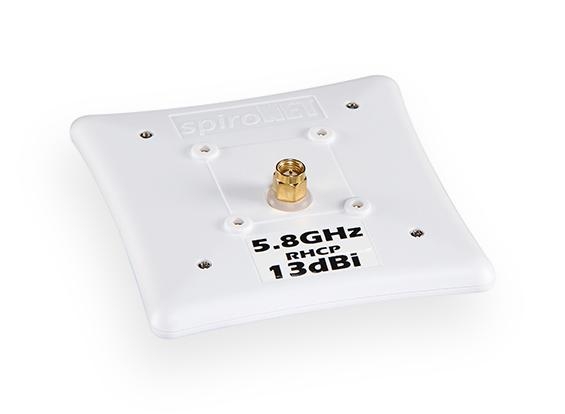

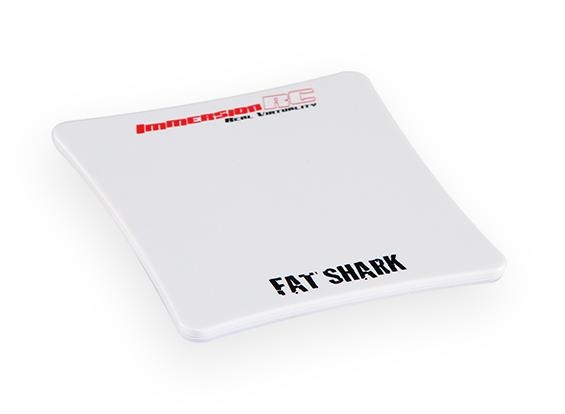

The new Immersion Circular Polarized patch antenna is the latest in the Groundbreaking SpiroNET line. The new CP Patch antenna is lightweight, Headset-mountable, and has unbelievable range.
Custom designed for the FPV market, it pushes the limits of range on 5.8Ghz, with 13dBi gain multi-km flights are possible even on CE-legal 25mW systems. For 600mW systems, it's time to start worrying about the range of the control link, since with a combination of this antenna, and a spiroNET omni, the video range can greatly exceed the control range of most 2.4GHz radios.
Precision manufactured with very tight tolerances and 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance, No expense was spared. Its Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.
If your starting to feel limitations of you 5.8Ghz system this CP Patch antenna can breath new life into your FPV gear.
Specs:
Connector: SMA compatible with all FatShark/ImmersionRC 5.8GHz products
Polarization: Right-hand circular 5.8GHz ISM Band
Gain: 13dBi
Beam width: 35 degrees (H + V)
F/B ratio: 26dB, VSWR is < 1.5:1 (5740 - 5860MHz).
Impedance: 50 ohms.
Size: 92x92mm
