ImmersionRC DUO5800v3 5.8GHz Diversity Receiver w/GS-Link - Dual Output

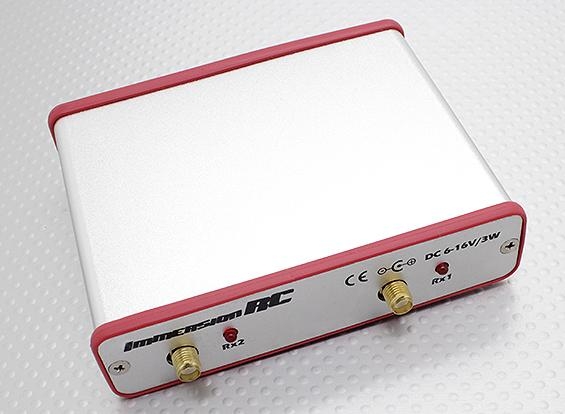

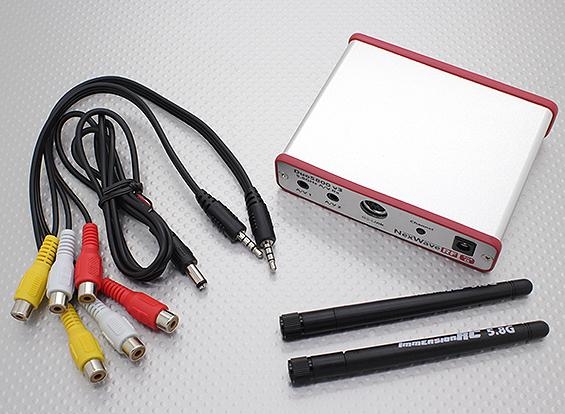

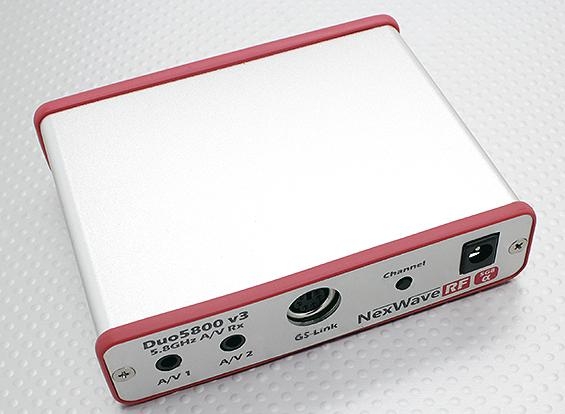

The ImmersionRC Duo5800v3 finally makes 5.8GHz A/V links affordable. Compatible with our 25mW/100mW, and 600mW 5.8GHz transmitters, the Duo5800 provides a high quality video link, which co-exists with adjacent 2.4GHz R/C transmitters.

The standard 3.5mm 4-pole jacks combine video and stereo audio in one simple connection. These are compatible with FatShark equipment, and greatly reduce ground-station ‘clutter'. (Combine with the Power Box to increase the number of A/V outputs to 5!)

Features:
• A/V receiver with diversity antenna inputs
• GS-Link for single-cable connection to a groundstation
• Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
• NexWaveRF technology, for double-range
• Not affected by 2.4GHz, or UHF R/C radios!

Specs:
Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860MHz
Dimensions: 105x88x25mm
Weight: 202g
