ImmersionRC FPV Power Box AV Groundstation power and A/V distribution

The ImmersionRC PowerBox reduces cable mess and provides clean, redundant, distributed power. A built in video buffer ensures all connected devices receive a clean PAL/NTSC signal with correct video level specifications, giving you the clean video you expect.

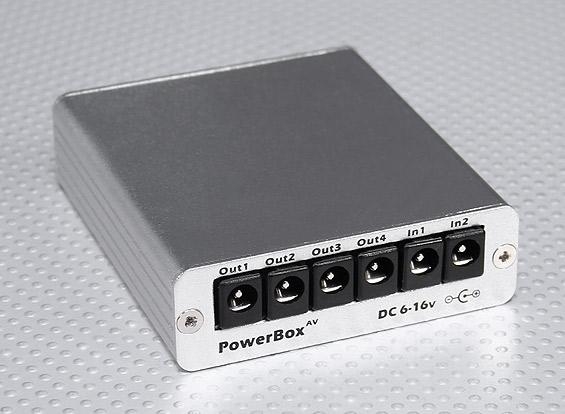

• Twin Redundant power inputs
• 4 filtered power outputs
• Fused input, reverse polarity protection

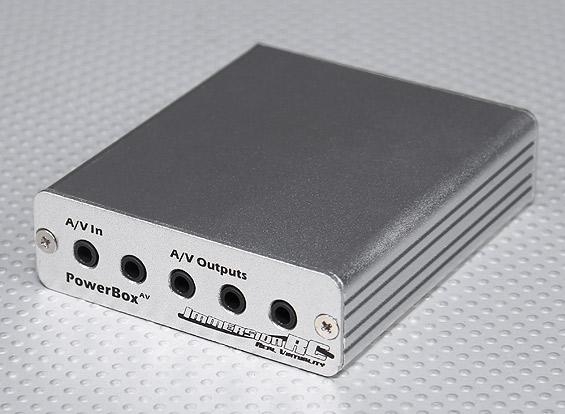

• 4 buffered A/V outputs
• Standard 3.5mm 4-Pole jacks, used on all FatShark/ImmersionRC equipment

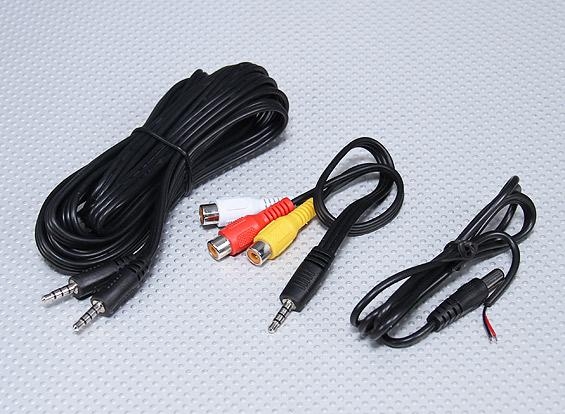

• Interconnect cables supplied
• Low-battery detect, on each redundant power input
• Audible Alarm for low battery
• Adjustable video gain, correct for out-of-spec receivers
• Dimensions: 85 x 74 x 23mm
• Weight: 120 g
• Power Requirements : 6-12v, 250mA max.
