Product description:
Toray 3K carbon fiber cloth woven carbon fiber plate and of 3K hollow pure carbon fiber carbon fiber tube (non-3K glassy carbon tube)

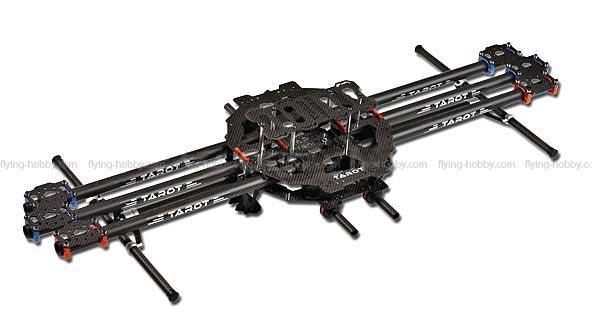

Full CNC machining, design standards higher than similar products, the full set of rack weighs only 600 grams. Full-folding design, designed for users with high portability requirements, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance,
The fire observation, life exploring the cable line patrol, farm monitoring, and other equipment load requirements of mobile performance and need more application areas left blank Air. "Detailed specifications read related accessories Description
Configuration requirements:
*Wheelbase diameter 680MM ,
*10-13-inch carbon fiber propeller,
*about 300W light disc motor,
*brushless motor: 2212/2216/2814 Series 880-1000KV
*2000MHA 3-4S battery ,
*20-30A Brushless ESC with moderate load
(for example, small digital camera, a small single electronic camera, etc.), for a variety of small-scale aerial job
(Photos, video) with the ground station system can achieve a variety of light load task operation.
Accessories
500 dedicated outfield bag / black - reinforced TL2647 (optional)
FY680 folding six-axis carbon fiber adapter cover TL6803
16MM carbon tube folded positioning seat assembly. TL6804
Metal 16MM carbon tube clamper group. TL6805
FY680 folding six-axis carbon fiber panels, center board TL6806
The M3H5 hexagonal aluminum column TL6807
M16 aircraft motor mount TL6808
φ16MM 3K pattern matte pure carbon nanotubes (333MM) TL6809-1
φ16MM 3K pattern matte pure carbon nanotubes (323MM) TL6809-2
The M10 metal silicone damping Seat TL6810
Plastic tripod
FY680 six-axis aircraft folding tripod TL6811
M2.5 ladder screws TL2778-01
Specifications:
Trumpet Decal × 1 medium water stickers x 2 set of instructions × 1
FY680 full six-axis folding vehicle rack [pure carbon tube version] group weight: 600G
