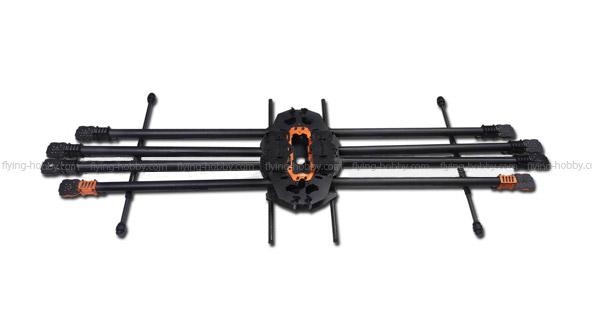

Product Description:
- Designed for UAV Aerial Photography. Perfect for light capacity, long time, and large range job; for example, RC monitoring, aerial researching, measure sketching, farm developing… etc.
- Applicable to 5DII, RED EPIC, C300, FS700.

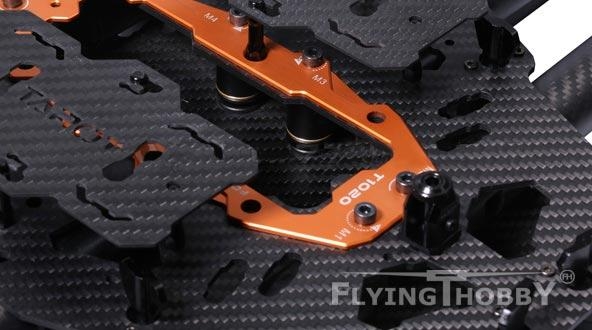

- Toray 3K carbon fiber applied, CNC processed. Light weight, high strength, vibration resistant.
- Battery mount is detachable, prevent crash damage.
- Metal clamp is 40 dovetail designed, with a strong clamping force.

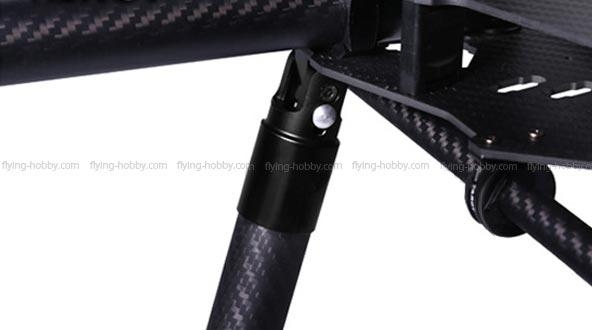

- Foldable boom is applied with self-tightening thread structure.
- Light weight motor mount is CNC processed, double color appearance, brings strong visual focus.
- Standard mount rod diameter is 12MM. Applicable to gimbals with center distance 165MM.
- Standard equipment: Foldable GPS mount, 8 in 1 aggregator, and multi-copter foldable landing gear.
Difference between TL18T00 and TL15T00:
Mounting distance from 155MM to 165MM. Wider center plate. Difference between shafts is longer, applicable to 17-18' propellers and 5008/340KV motor [TL96020].
Specification:
- Boom diameter: 25MM
- Distance between axis diameter: 1270MM
- Kit diameter: 1320MM
- Height: 420CM
- Center plate: 301x209x2.5MM
- Motor mounting pitch:16MM/ 19MM/ 25MM/ 27MM equilateral triangle installation.
- Propeller specification: 17-18' propeller
- Brushless Motor: 5008/340KV, TL96020
- Battery: 6S 22.2V 15000-20000MHA
- Brushless ESC: 35-40A
- Mounting boom diameter: 12MM
- Weight with full accessories: 11KG
- Kit Weight: 2.0KG
Specification:
- T15/T18 Battery Mount [TL15T01] x2
- T15/T18 Aluminum Bolt [TL15T02] x2
- T15/T18 Metal Reinforcement Plate [TL15T03] x1
- T18 UAV center plate [TL18T03] x1
- Pure Carbon Boom for T18 [TL18T01] x4
- Pure Carbon Boom for T18 [TL18T02] x4
- T15/T18 Foldable Oct-copter Mount [TL15T06] x2
- Foldable Mount for GPS Antenna [TL15T08] x1
- T810/T960 Foldable Landing Gear Set [TL96013] x1
- Multi-copter Spacing Shim / 4 pieces [TL96021] x4
- T810/T960 Gimbal Hanging Parts [TL96014] x1
- 8 in 1 Aggregator [TL100B14] x1
- Metal Clamping Holder for Multi-copter [TL9605] x8
- 25MM Motor Mount for Multi-copter/ Orange [TL9602] x2
- 25MM Motor Mount for Multi-copter/ Black [TL9603] x6
- Titanium contact file x1
- Water sticker x8
- Color sticker x2
- Velcro sticker x2
- Instruction x1
- Spare screw pack x1
- Color Box x1
