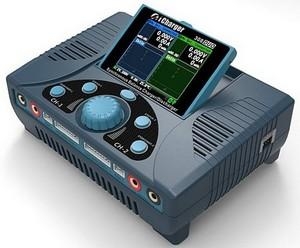

The iCharger 308 DUO is a nicely refined, easy to use charger for your work bench or for use at the field. It has an easy to use knob for selecting the charge/discharge program and a very informative color screen that's also tilt adjustable.
As the name suggests it has two outputs for simultaneous or synchronized charging. An impressive 1300W charge capacity shared between the two outputs means you can charge those 8s high capacity packs quickly and safely at the field. It has a balance charge and stand alone balance function to keep your packs in the best condition and audible warnings with flashing messages on the screen should the charger sense any faults.
You can charge your phone or other USB compatible devices with the 1A 5V USB charger but rest assured, it has a built in over current protection.
This charger is very versatile allowing you to charge LiPo, LiLo, LiFe, NiMh, NiCd, PB and NiZn batteries.It also features charge, discharge, storage charge functions and upgradeable firmware through your PC (Drivers included in the CD instructions).
A very comprehensive and practical charger for the hobbyist who needs all the gadgets.
Features:
• Dual channel output
• Up to 30V input
• Uses synchronous DC/DC converter technology
• 9 Multi-discharge features
• Anti-sparking protection
• Internal temperature protection
• Reversed polarity protection for input and output
• Flip up 2.8-inch LCD color screen
• Easy to use programming knob
Spec:
Maximum charge power capacity : 1300W
Charge current range : 0.0-50.0A
Discharge current range : 0.05-30A
Input voltage range : 10.0-30v DC
Maximum discharge power capacity : 30W
Maximum external discharge power capacity : 280W @ 40V/7A
Current drain for balancing : 2.4A
Balance accuracy : <10mV
LiPo/LiIo/LiFe : 1-8s
NiCd/NiMH battery cell count : 1-20s
Pb battery cell count : 1-15s series
Battery setup memories : 10
Intelligent temperature control : Yes
PC Connect : Micro SD or USB port
Weight : 910g
Dimensions (LxWxD) : 171.0 x 117.8 x 58.8mm

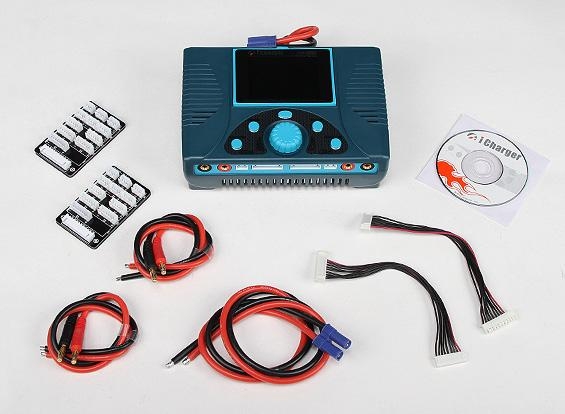

Included:
1 x CD with User manual and usb drivers
1 x Power lead with EC5 Connector
2 x Charging lead with two banana plugs
2 x Balance board leads
2 x Balance boards
*Please notice that software update information is available in the files tab
