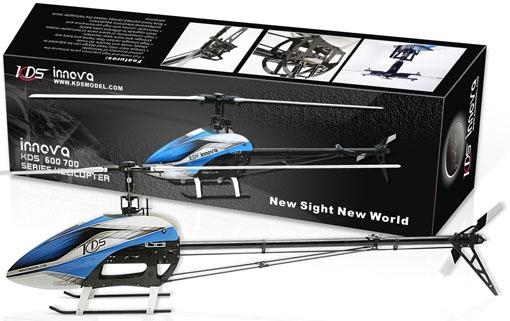

KDS-600FBL KDS Innova 600 Flybarless Helicopter Super Combo Motor+ESC 120HV+E-Bar+Blade+Servo

KDS INNOVA 600FBL SUPER COMBO

1.High strength aluminum parts with sand blasting anodising procedure features elegant appearance.
2.Brand new flybarless main rotor head. The confirguration of main rotor holder and the holder arm is disconnect-type. Easy to assemble or disassemble them and change the rotor head to flybar version.
3.Upper motor mount design. Motor mount applies to up and down double bearing block design to improve support of motor axis. 4.Simple and effective tail boom stiffener design.
5.Three-ply main shaft mount enable main shaft to work more smoothly.
6.Helicopter frame with front and rear strengthening aluminum plate enhances the strength of frame.
7.3K carbonfiber helicopter body features simple construction and high strength.
8.High compatibility of parts among KDS INNVOA helicopters series
9.Comes with high quality handmade painting fiber canopy

SPECIFICATIONS SUPER COMBO
600 FBL Helicopter
KDS BL5052-500Kv
KDS EBAR X 1
KDS CF 3D 610mm blade x 1 set
KDS CF Tail 95 mm x1 set
KDS N680 digital servo x 3
- Output Torque: 10KG.cm(4.8V) - 12KG.cm(6.0V)
- Speed:0.09sec/60(4.8V) - 0.08sec/60(6.0V)
- Weight 60gr
KDS N690 digital tail servo x 1
- Output Torque: 4KG.cm(4.8V) - 4.5KG.cm(6.0V)
- Speed:0.07sec/60(4.8V) - 0.06sec/60(6.0V)
- Weight 49gr
KDS 8A UBEC X 1
KDS BL ESC HV 120A

KDS Blade 610mm

KDS Tail Blade 95mm

KDS UBEC

KDS ESC 120A HV

KDS E-BAR Flybarless System with LCD programmer PPC

KDS Professional Digital Servo N690 - N680
