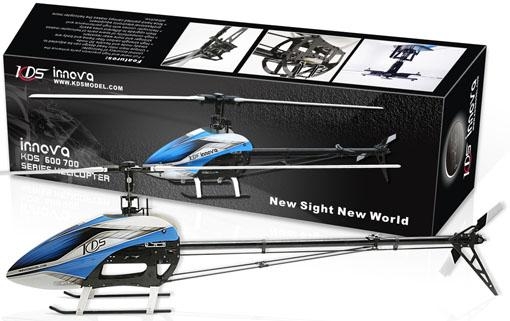

KDS INNOVA 700FBL BODY
1.High strength aluminum parts with sand blasting anodising procedure features elegant appearance.
2.Brand new flybarless main rotor head. The confirguration of main rotor holder and the holder arm is disconnect-type. Easy to assemble or disassemble them and change the rotor head to flybar version.
3.Upper motor mount design. Motor mount applies to up and down double bearing block design to improve support of motor axis. 4.Simple and effective tail boom stiffener design.
5.Three-ply main shaft mount enable main shaft to work more smoothly.
6.Helicopter frame with front and rear strengthening aluminum plate enhances the strength of frame.
7.3K carbonfiber helicopter body features simple construction and high strength.
8.High compatibility of parts among KDS INNVOA helicopters series
9.Comes with high quality handmade painting fiber canopy
SPECIFICATIONS KDS INNOVA 700
Length: 1328mm
Height: 408mm
Main Rotor: 690mm
Tail Blade: 105mm
Motor Pinion: 12T
Main Gear: 115T
Tail Drive gear: 42T
Tail Gear: 9T
Gear Ratio: 9.6: 1: 4.6
Weight (w/o power): 2500g
SPECIFICATIONS
700 FBL helicopter x1
Fiberglass Canopy x1
