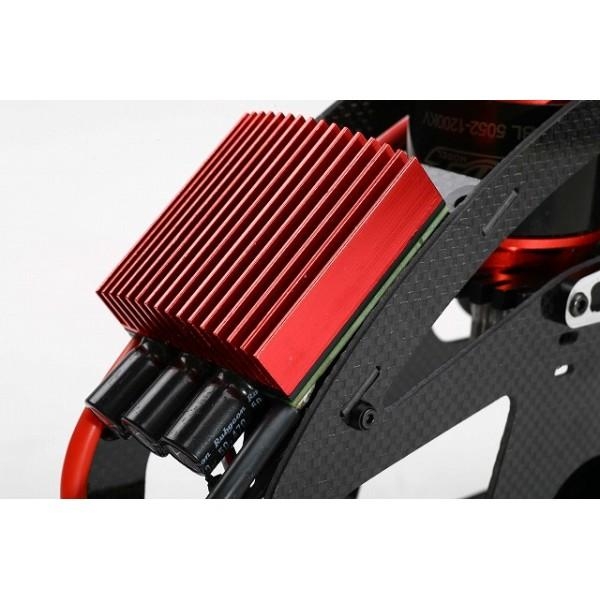

KDS ESC120A-HV

KDS ESC120A-HV

1 Made of high quality components, guaranteeing the consistency

of first-rate quality product.

2.Adopt PCB of ultra-low impedance, strong ability to bear current.

Current marked and explain consistent.

3.Good capacity of anti-jamming, efficiently reduced the possibility

of out of control.

4 Equipped with over-heat protection circuit.

5 Equipped with over/under voltage protection circuit.

6 Smooth and superior speed linear feel; Stable and powerful speed

output.

7 Support the governor function.

Note: The HV ESC has no intern BEC. A separate power supply or

external UBEC is required for receiver when you use the ESC.

KDS ESC120A-HV

Rated Current: 120A

Continuous Current: 120A

Max. Current: 150A (No less than 10 seconds)

BEC Current: None

LiPO Cells Supported: 5S-12S

NiMH Cells Supported: 15S-32S

Weight: 135g
