General Specifications
| Electronic Specifications |

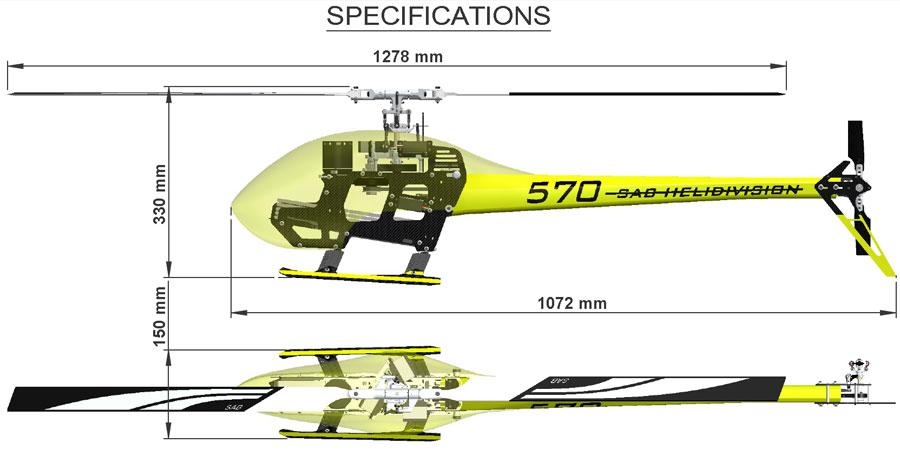

| • Main rotor diameter: 1278 mm (with 570 mm blades) • FBL System • Main blade length: 550 to 575mm • Tail rotor diameter: 260 mm • Tail blade length: 95 mm • Main shaft diameter: 10 mm • Spindle shaft diameter: 8 mm • Weight including electronics: 2400 g (excluding batteries).
Special Features:
• Full carbon boom • Battery tray 6S and 12S • Inside carbon rod • Dampened tail system
| • Cyclic Servos: Standards size 40mm
• Tail Servo: Standard size (40mm)
• Typical Speed Controller: • Maximum motor size: 4025 size (52 mm diameter, 56 mm height) - 6S 1000-1400 Kv
- 12S 500-700 Kv
• Battery compartment: - 6S 5000/5500 mAh. Max dimension 50x60x200mm
- 12S 2600/3300 mAh. Max dimension 50x45x280mm
Kit Includes:
• 21T motor pulley (other pulley sizes available) • 1 battery tray with straps • 570 mm main blades • 95 mm tail blades |
| The following motor pulleys are available: |
| H0215-16-S-16T Pinion = ratio 12.9:1 H0215-17-S-17T Pinion = ratio 12.2:1 H0215-18-S-18T Pinion = ratio 11.5:1 H0215-19-S-19T Pinion = ratio 10.9:1 | H0215-20-S-20T Pinion = ratio 10.3:1 H0215-21-S-21T Pinion = ratio 9.8:1 H0215-22-S-22T Pinion = ratio 9.4:1 H0215-23-S-23T Pinion = ratio 9:1 H0215-24-S-24T Pinion = ratio 8.5:1 |
All these motor pulleys are for a 6 mm motor shaft. Each pulley includes an adapter for 5 mm motor shafts.
 |  |  |  |
| • HPS (High Precision Head System) • 10mm high strength steel main shaft • 8mm high strength steel spindle shaft
|
• 2mm carbon frames.
| • Stronger main gear, Gates GT3 motor belts, 10 mm one-way bearing | • Strong landing gear. Landing gear mounting brackets do not require bolts to be installed. The brackets are a break point during a crash preserving frames and other important parts
|
