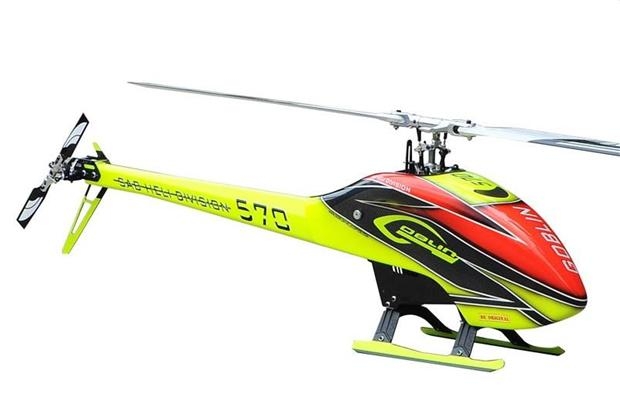

KIT GOBLIN 570 GIALLO / ROSSO

Name: KIT GOBLIN 570 GIALLO / ROSSO
SKU: SG570
Availability: InStock

Cod. SG570

CONTATTATECI PER IL PREZZO!!!

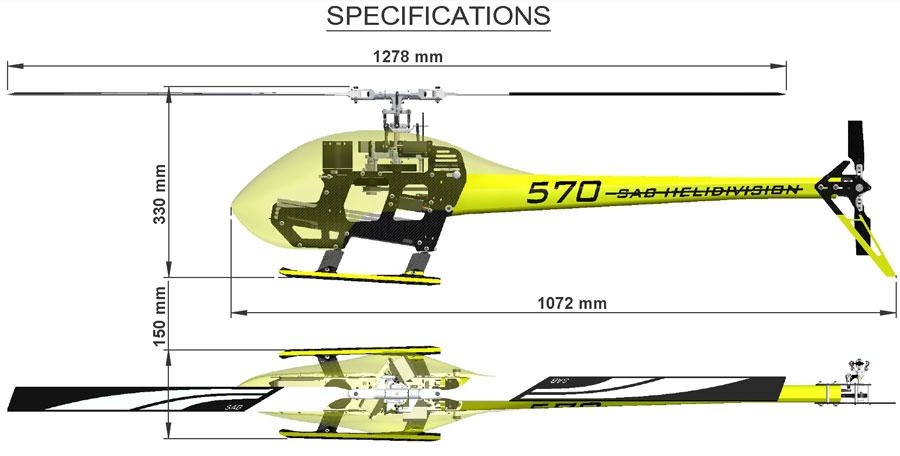

General Specifications

Electronic Specifications

• Main rotor diameter: 1278 mm (with 570 mm blades)

• FBL System

• Main blade length: 550 to 575mm

• Tail rotor diameter: 260 mm

• Tail blade length: 95 mm

• Main shaft diameter: 10 mm

• Spindle shaft diameter: 8 mm

• Weight including electronics: 2400 g (excluding batteries).

Special Features:

• Full carbon boom

• Battery tray 6S and 12S

• Inside carbon rod

• Dampened tail system

• Cyclic Servos: Standards size 40mm

• Tail Servo: Standard size (40mm)

• Typical Speed Controller:

6S 100A
12S 80A

• Maximum motor size: 4025 size (52 mm diameter, 56 mm height)

6S 1000-1400 Kv
12S 500-700 Kv

12S 500-700 Kv

• Battery compartment:

6S 5000/5500 mAh. Max dimension 50x60x200mm
12S 2600/3300 mAh. Max dimension 50x45x280mm

Kit Includes:

• 21T motor pulley (other pulley sizes available)

• 1 battery tray with straps

• 570 mm main blades

• 95 mm tail blades

The following motor pulleys are available:

H0215-16-S-16T Pinion = ratio 12.9:1

H0215-17-S-17T Pinion = ratio 12.2:1

H0215-18-S-18T Pinion = ratio 11.5:1

H0215-19-S-19T Pinion = ratio 10.9:1

H0215-20-S-20T Pinion = ratio 10.3:1

H0215-21-S-21T Pinion = ratio 9.8:1

H0215-22-S-22T Pinion = ratio 9.4:1

H0215-23-S-23T Pinion = ratio 9:1

H0215-24-S-24T Pinion = ratio 8.5:1

All these motor pulleys are for a 6 mm motor shaft. Each pulley includes an adapter for 5 mm motor shafts.


• HPS (High Precision Head System) • 10mm high strength steel main shaft • 8mm high strength steel spindle shaft	• 2mm carbon frames.	• Stronger main gear, Gates GT3 motor belts, 10 mm one-way bearing	• Strong landing gear. Landing gear mounting brackets do not require bolts to be installed. The brackets are a break point during a crash preserving frames and other important parts


• Aluminum tail case for increased stiffness. • Dampened tail system for increased vibration tolerance	• 6S and 12 S battery	• Battery tray with lock system.	• Nylon bolt break-away system to preserve the boom during a crash


• Aluminum ESC support	• Standard size cycling servos	• Standard size tail servo	• Canopy saver, protects the canopy edges from scuffing.

Limited pre order

KIit Goblin 570

Caratteristiche generali

• Diametro rotore principale: 1278 mm (pale da 570mm)
• Pale principali: 550 to 575mm
• Diametro rotore di coda: 260 mm
• Pale di coda: 95 mm
• Diametro albero principale: 10 mm
• Diametro spindle: 8 mm
• Peso con elettronica installata: 2400 g (batterie escluse).

Caratteristiche speciali

• Tubo di coda in carbonio
• Sostituzione rapido batteria 6S e 12S
• Carbon road interno
• Rotore di coda con spindle e damper

Elettronica

• Servi per ciclico standard 40mm
• Servo di coda da 40mm

• ESC richiesto
o 6S 100A
o 12S 80A

• Motore: classe 4025(52 mm diametro massimo, 56 mm altezza massima)
o 6S 1000-1400 Kv
o 12S 500-700 Kv

• Alloggio batterie
o 6S 5000/5500 mAh. Dimensioni massime 50x60x200mm
o 12S 2600/3300 mAh. Dimensioni massime 50x45x280mm

Prodotto disponibile da 07/03/2014

spedizione gratis...
