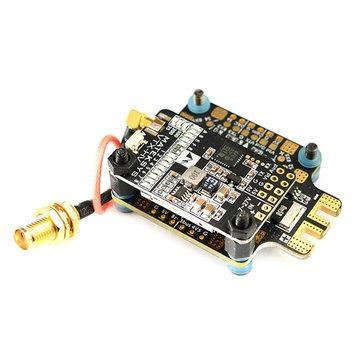

Matek BetaFlight F405-CTR Flight Controller Built-in PDB + Matek 5.8G Video Transmitter VTX-HV
Specification: Matek F405-CTR (User manual): Brand name: Matek Systems
Item name: BetaFlight F405-CTR
Size: 36x46mm PCB with 30.5mm mounting holes
Weight: 10g
FC:
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
Baro: BMP280 (I2C)
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2, S5 or S6 optional
Camera control on S6 or DAC optional
Smartaudio & Tramp VTX protocol supported
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
PDB:
Input: 6~30V (3~6S LiPo) w/TVS protection
PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.300mA for Spektrum RX
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)
Input voltage: 7~27V(2~6S LiPo)
40 standard channels, A/B/E/F/R Band
Output Power: 25, 200, 500mW switchable
BEC Output: 5V/1A for Camera or FC
Traditional button+LED control of frequency and power
BFCMS control via FC UART _TX
Firmware upgradeable
Power Consumption: 3.1W Max. @ 500mW
Video Input Impedance: 75 Ohm
Audio Subcarrier Frequency: 6.5 MHz
RF Connector: U.FL (IPEX)
Video Format: NTSC/PAL
Weight: 6g (Tx only, w/o SMA cable)
Size: 36*22*6.5mm w/30.5mm mounting
Package included: 1x Matek Systems BetaFlight F405-CTR
1x Rubycon ZLH 35V/470uF (Low ESR)
6x silicon grommets M4 to M3
1x FR4 PCB Plate 36*36*1mm
1x 5.8G Video transmitter (MMCX)
1x PVC Heat-shrink tube
1x MMCX to SMA Female, RG178 cable 9cm
