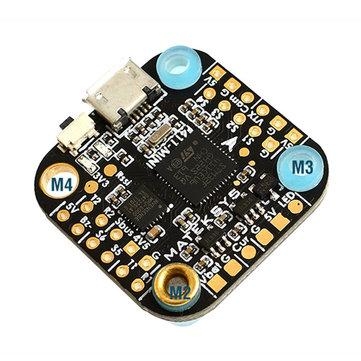

Matek System 20x20mm F411-mini Mini F4 Flight Controller AIO OSD BEC and LED Strip for RC Drone

Matek System 20x20mm F411-mini Mini F4 Flight Controller AIO OSD BEC and LED Strip














Connection Guaid



Specification:
Brand Name: Matek
Item Name: 20x20mm Mini F4 Flight Controller AIO OSD BEC and LED Strip

MCU: 100MHz STM32F411
IMU: MPU6000

OSD: BetaFlight OSD w/ AT7456E chip

Camera control supported on Rssi pad

Battery Voltage Sensor: 1:10

Current Sensor: No (FCHUB-A option)

BEC: 5V 2A

LDO 3.3V: Max.300mA

I2C1 SDA & SCL available

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: No

Blackbox: No

Size: 28x28mm
Mounting Hole: 20x20mm
Weight: 4.5g

Features:
- 20x20mm Mounting hole, only 4.5g
- with betaflight OSD and 5V BEC output
- with 2 LED indicator, blue and red
- Built in inverter for SBUS input (UART1-RX)

- PPM/UART Shared: UART2-RX

Package Included:
1x F4 Flight Controller
6x Silicon grommets M4 to M3
6x Brass grommets M3 to M2
