starts the next level of the BEASTX flybarless revolution. MEMS sensors of the latest generation measure the aircraft's rotational movement with unprecedented precision and transmit the data digitally and in real time to the control system ... MICROBEAST PLUS is based on the popular MICROBEAST and starts the next level of the BEASTX flybarless revolution. MEMS sensors of the latest generation measure the aircraft's rotational movement with unprecedented precision and transmit the data digitally and in real time to the control system. These new sensors are insensitive to typical vibrations of a model helicopter. The housing made of plastic composite material keeps the weight of MICROBEAST PLUS sensationally low.
MICROBEASTPLUS and MICROBEASTPLUSHD work with the world's proven EasySetup of BEASTX. The sophisticated setup can quickly be done everywhere and no expensive programming box or computer is needed. So many settings can be changed simply and easily at the flying field. Further options are available with the optional USB2SYS in-ter-face and the StudioX software package. MICROBEAST PLUS can be kept up to date by using the update functionality and advanced pilot can
thus customize the unit specifically to their needs. StudioX for Windows & Mac is available for download at www.beastx.com.

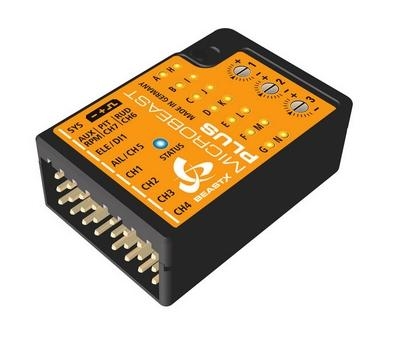

MICROBEAST PLUS
Input voltage: 3,5 V - 8,5 V DC (Operation with 2 cell LiPo possible)
Processor: 32 Bit ARM
Sensor: 6-Axis MEMS (Gyro + Accelerometer)
Dimensions: 36 x 25 x 14 mm
Weight (w/o wiring): ca. 11g
Features:
Servo center pulses:
• Swashplate: 1520µs
• Rudder: 1520µs, 960µs, 760µs
Servo pulse rates:
• Swashplate: 50 - 200Hz
• Rudder: 50 - 560Hz
Swashplate mixing:
• mCCPM, eCCPM: 90, 120, 135, 140
• Swash phasing (by using StudioX)
Input signals:
• Single channels
• PPM serial pulse
• SRXL (JR XBus, SUMD, M-Link...)
• Futaba S.Bus/S.Bus2
• Spektrum Remote Receiver* (DSM2/DSMX)
* with Spektrum Remote Receiver adapter
Box contents:
• MICROBEAST PLUS
• Receiver connection cables
• 3M adhesive pads
• Adjustment tool
• Printed instruction manual
Accessories:
• USB2SYS Interface
• Spektrum Remote Receiver adapter
