Heavy Duty" version of MICROBEAST PLUS with an additional switchable high power input. It is particularly suitable for helicopters with standard sized servos and it reflects today's requirements for power supply like never before.

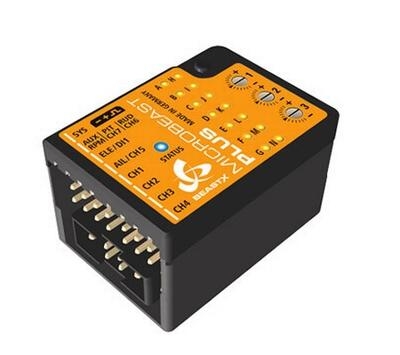

MICROBEAST PLUS HD is designed as "e;Heavy Duty" version of MICROBEAST PLUS with an additional switchable high power input. It is particularly suitable for helicopters with standard sized servos and it reflects today's requirements for power supply like never before. The power supply port is realized by a well proven, high-quality connector. By using the included switch, the system can be activated electronically and remains operational even if the switch is disconnected by accident. Due to this fact the high power connection may be used without the switch at all. MICROBEAST PLUS HD has a housing in aluminum composite construction.
MICROBEASTPLUS and MICROBEASTPLUSHD work with the world's proven EasySetup of BEASTX. The sophisticated setup can quickly be done everywhere and no expensive programming box or computer is needed. So many settings can be changed simply and easily at the flying field.
Further options are available with the optional USB2SYS in-ter-face and the StudioX software package. MICROBEAST PLUS can be kept up to date by using the update functionality and advanced pilot can thus customize the unit specifically to their needs. StudioX for Windows & Mac is available for download at www.beastx.com.
MICROBEAST PLUS HD
Input voltage: 3,5 V - 8,5 V DC (Operation with 2 cell LiPo possible)
Processor: 32 Bit ARM
Sensor: 6-Axis MEMS (Gyro + Accelerometer)
Dimensions: 36 x 25 x 21mm
Weight (w/o wiring): ca. 19g
Features:
Servo center pulses:
• Swashplate: 1520µs
• Rudder: 1520µs, 960µs, 760µs
Servo pulse rates:
• Swashplate: 50 - 200Hz
• Rudder: 50 - 560Hz
Swashplate mixing:
• mCCPM, eCCPM: 90, 120, 135, 140
• Swash phasing (by using StudioX)
Input signals:
• Single channels
• PPM serial pulse
• SRXL (JR XBus, SUMD, M-Link...)
• Futaba S.Bus/S.Bus2
• Spektrum Remote Receiver* (DSM2/DSMX)
* with Spektrum Remote Receiver adapter
Box contents:
• MICROBEAST PLUS HD
• Switch harness
• Power cable
• Receiver connection cables
• 3M adhesive pads
• Adjustment tool
• Printed instruction manual
Accessories:
• USB2SYS Interface
• Spektrum Remote Receiver adapter
