Sistema Flybarless MICROBEAST V3 prodotto dalal BEASTX predisposto per RX SPEKTRUM con tecnologia 2.4 GHz.
Descrizione Prodotto :
Serial pulse input (PPM / S-BUS / Spektrum) can be used only after softwareupdate. To update the software, the USB-interface and the latest software is required.
At the moment the Microbeast can be used with every normal Spektrum receiver. The software update is only neccessary to directly connect a Spektrum satellite to the microbeast.
The Flybarless-Revolution!

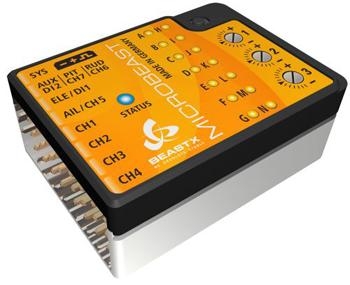

MICROBEAST has an aluminum composite design casing. Its slight dimensions allow it to be installed in practically any model helicopter.
MICROBEAST can be installed horizontally as well as vertically.
The sensory system is based on the newest MEMS technology. Software with sophisticated sensor data processing makes installation in electrical & nitro model helicopters possible.
With an optional adapter cable, MICROBEAST can also be utilized solely as a tail gyro. This is recommended especially for whoever is switching from the conventional paddle system and wants to slowly approach the RIGID operation with the 3 axle solution (3G-Gyro Mode).
The well-thought-out and easy setup goes smoothly with no need of an expensive programming box or computer. This makes it easy to still change a number of settings even at the airfi eld.
Moreover MICROBEAST?s integrated swashplate mixer enables the use of simple remote control systems which do not have their own swashplate mixing (NO-MIX).
MICROBEAST is able to process many types of sum signals (PPM / S-BUS / Spektrum). With the optional Spektrum Satellite Adapter, installation in indoor model helicopters is also possible without a great number of wires.
Updates and advanced setup possibilities (Setups) can be done comfortably with the optional USB interface „USB2SYS" via the BEASTLINK interface. Software for Windows & Mac can be downloaded free at www.BEASTX.com
Technical Data:
Operating voltage: 3,5V...8,5 V DC (Lipo 2s possible)
Processor: 32Bit ARM
Analog processing: 17Bit
Sensor technology: 3 MEMS angular rate sensors
Adjustable servo center pulse width:
Tail: 760µs / 960µs / 1520µs
Adjustable servo pulse rate:
Tail: 50 Hz / 165 Hz / 270 Hz / 330 Hz
Swashplate: 50 Hz / 65 Hz / 120 Hz / 200 Hz
Build-in swashplate mixer:
Mechanical / 90° / 120° / 140°
Size: 34 x 25 x 13,5 mm
Weight without cable: approx. 20 g
Serial pulse input: PPM / S-BUS / Spektrum (not possible in delivery status)
Content:
• MICROBEAST
• Receiver connection cables
• Mounting material
• Adjust tool
• Instruction manual
