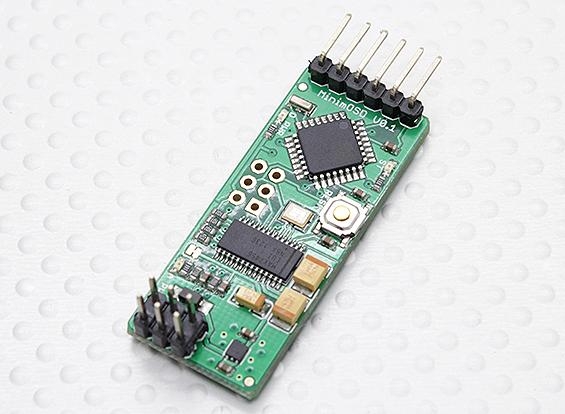

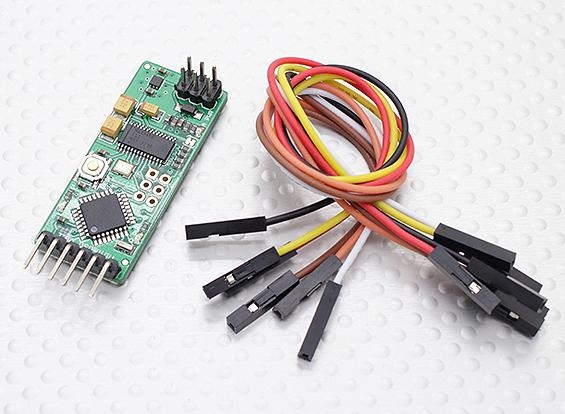

This is a mini Arduino based on-screen display board. It's tailored for use with ArduPilot Mega and the MAVlink protocol, and designed to be as small as possible.
It's main components are an ATmega328P 8 bit microcontroller with an Arduino bootloader, and a MAX7456 monochrome on-screen display. Programming is done through an FTDI-compatible 6-pin cable.
It features two independent power and ground sections to isolate the OSD's analog stage: a +5V section for the ATmega and the OSD's digital stage, powered through the FTDI cable or other +5V source; and a regulated +5V section for the OSD's analog stage, powered through the video in/out header and capable of handling up to +12V input.
Features:
• ATmega328P with Arduino bootloader
• MAX7456 monochrome on-screen display
• FTDI cable compatible pinout
• Standard 6-pin ISP header
• Two independent power sections with an LED indicator on each
• Solder jumpers for combining the power sections
• +5V 500mA regulator for up to +12V supply input (5-12v range)

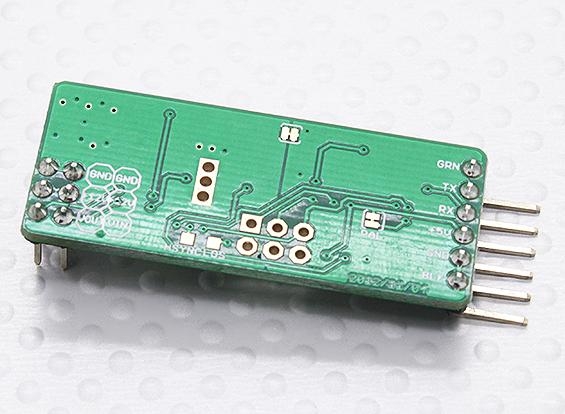

• Solder jumper for PAL video option
• Exposed test points for HSYNC and LOS
Specs:
Voltage: 5-12v
Dimensions: 50 x 18 x 10mm
Weight 4g
Please see the file uploaded under the files tab for Developer credits, Links to source code and other information!
