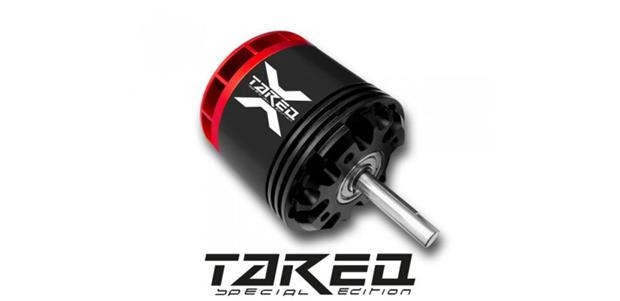

Xnova 3215-930kv Tareq EDITION specifications
Designed for powerfully 3D and excellent flight-time , custom made for your SAB-GOBLIN-380 helicopter where highest performance to weight ratio is important.
Xnovamotors specifications are real datas and not modified,, we convince you by flight-performance and not datasheets.
Slots & Poles 12n10p
Winding T 10YY
rpm/V 930
Volt (V) 10 / 22.2
Io(A) 1.2 / 1.7
Rm (mohm) 34 / 34
Weight (without connector) (g) 140
Body Length (no shaft) mm 40.7
Diameter (mm) 36
Shaft Length (mm) (Details pictures) A
Shaft Dia. (mm) 5
Mounting Holes CTC Distance (mm) 25
Mounting Screw M3x0.5
Max Eff. Curr. 17.77 / 31.51
Max Eff. 86.49 / 89.21
Kt (Nm/A 0.0107
Km (Nm/sqrt(w)) 0.0550
Max Continuous Power(Watts) 1080
Peak Continuous Power(Watts) (2 sec) 1360
Max Continuous Current(Amps) 48
