MOTORE XTS-Xnova 2820-890kv GOBLIN 380 §

Xnova 2820-890KV specifications



Designed for powerfully 3D and excellent flight-time , custom made for your SAB-GOBLIN-380 helicopter where highest performance to weight ratio is important.

Xnovamotors specifications are real datas and not modified,, we convince you by flight-performance and not datasheets.



Slots & Poles 12n10p

Winding T 10YY

rpm/V 890

Volt (V) 10 / 22.2

Io(A) 1.2 / 1.7

Rm (mohm) 34 / 34

Weight (without connector) (g) 140

Body Length (no shaft) mm 40.7

Diameter (mm) 36

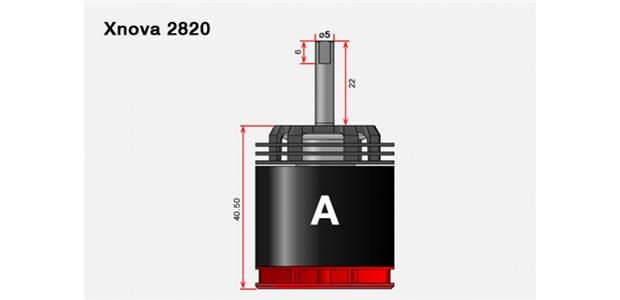

Shaft Length (mm) (Details pictures) A

Shaft Dia. (mm) 5

Mounting Holes CTC Distance (mm) 25

Mounting Screw M3x0.5

Max Eff. Curr. 17.77 / 31.51

Max Eff. 86.49 / 89.21

Kt (Nm/A 0.0107

Km (Nm/sqrt(w)) 0.0550

Max Continuous Power(Watts) 1080

Peak Continuous Power(Watts) (2 sec) 1360

Max Continuous Current(Amps) 48
