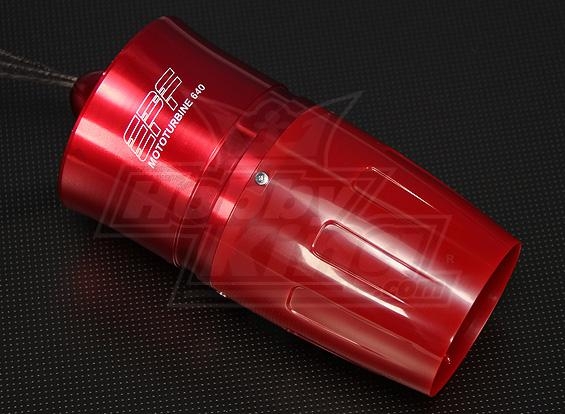

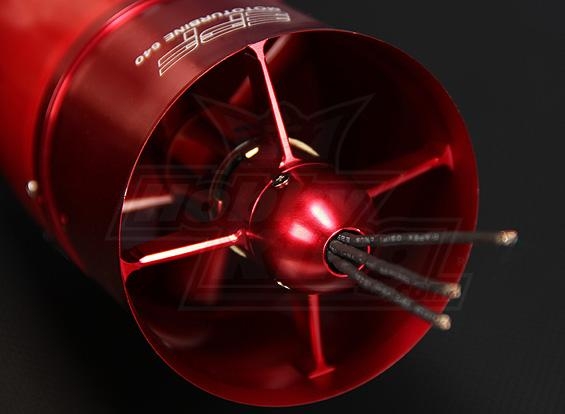

MotoTurbine 64mm 4700KV EDF Unit

All Moto-turbine parts are manufactured using precision CNC machine tools in Taiwan. CNC machining enables a high level of acuaracy in the manufacturing proccess and ensures strict tolernances can be maintained.

In conventional ducted fan design, the motor is secured to the stator hub while the fan secured to the motor shaft. During operation, any imperfection in either the motor or fan will cause both the fan and motor to vibrate at a certain resonance frequency. The oscillation can cause the blade tip to rub against the shroud of the duct. Moto-turbine's 3-bearing system reduces resonance vibration by 90%.

Motor: 2430-4700kv High Performance EDF Brushless
EDF Unit: 64mm
Battery: 11.1v (3s MAX)
AMP Draw: 58amp
Watts: 679watts
Thrust: 890g
ESC: 60amp or greater (Required)
Unit Weight: 160g

Test Data:
11.0v (3s) 2200mah / 54amp / 594watt / 810g Thrust
11.7v (3s) 4400mah / 58amp / 679watt / 890g Thrust
