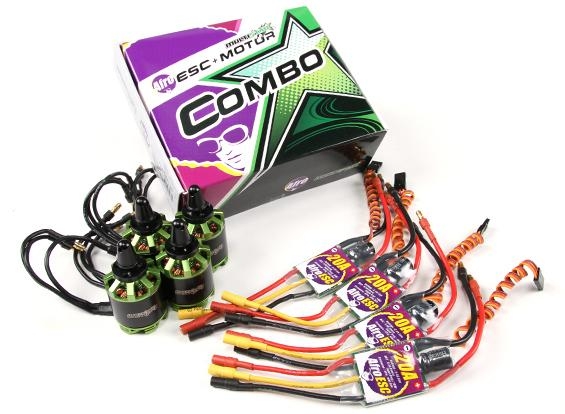

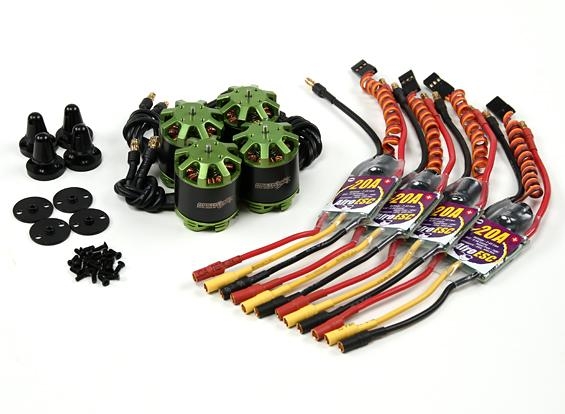

The new Easy combo from MultiStar and Afro, matching the more popular combinations into one easy package.
This combo is perfect for 400~600mm quads, and works great on 4s or 3s power. The 2216 has the extra power over the common 2212 increasing its efficiency with loads, such as when using a gimbal. The 800KV is perfect on 3s with an 11~10inch prop or a 9~10 prop on 4s. The matched 20A high speed Afro esc is pre-wired with matching bullet connectors, plug and play made easy.
The Afro ESC boasts high efficiency, all N-channel MOSFET design, jitter-free hardware PWM input and smooth power response, the Afro ESC series are set to change the expectations of multirotor pilots around the globe. The Afro ESC series are shipped with multi-rotor specific SimonK software preloaded, no need to reflash. For added convenience the Turnigy USB linker can be used via the PWM signal lead for any future software updates eliminating the need for complicated flashing jigs or the need to cut open the heat shrink.
The Turnigy MultiStar outrunners are designed with one thing in mind - maximizing multirotor performance! The 2216 V2 feature high-end magnets, high quality bearings and all are precision balanced for smooth running and now have replaceable CW/CCW prop adapters that support both direct bolt and hub style props.
MultiStar is simplifying the world of multirotors with their purpose built product line and taking the guess work out of your setup.
Specs (Motor):
KV(RPM/V): 800
Lipo cells: 2-4s
Max Watts: 222W
Max. current (10s): 20 amp
No Load Current: 0.5 amp
Intemal Resistance: 0.169 ohm
Number of Poles: 12
Shaft Size: 5mm, 2CW 2CCW rotation
Dimensions (Dia.xL): 28 x 32 mm
Bolt Holes Spacing: 16 & 19mm
Bolt thread: M3
Connector: 3.5mm Bullet type connector
Weight: 66g
Specs (Afro 20A ESC):
Current Draw: 20A Continuous
Voltage Range: 2-4s LiPoly
BEC: 0.5A Linear
Input Freq: 1KHz
Firmware: afro_nfet.hex
Discharge wire/plugs: 16AWG/male 3.5mm
Motor wire/plugs: 16AWG/female 3.5mm
Weight: 22.8g (Included wire, plug, heat shrink)
Size: 45 x 25.7 x 10.5mm
Royalties paid on each unit sold to SimonK and Hamasaki for their design work, without which the Afro ESC would never have been born, thanks guys!
