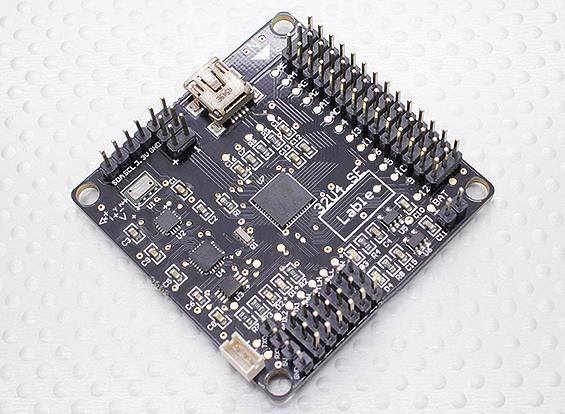

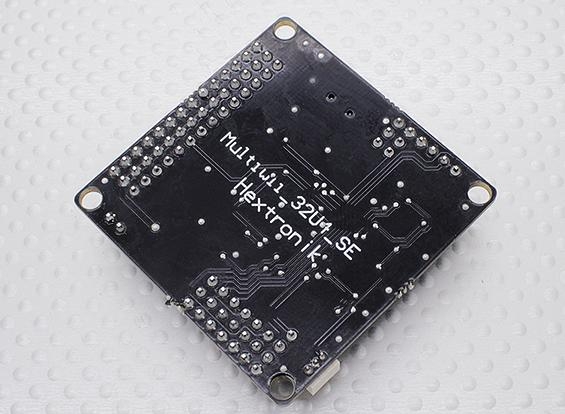

The MicroWii is a complete multi-rotor flight controller. It is based on the ATmega32U4, which is the processor of the Arduino Leonardo. The MicroWii incorporates an MPU-6050 chip, which is a combined gyro and accelerometer plus a precise MS5611 barometer and HMC5883L magnetometer.
This is the ultimate solution for powerful flight performance with your multi-rotor project. The possibilities are endless with the MicroWii, only limited by your imagination!
Features:
• USB on chip (no FTDI or UART needed)
• Free serial port (it's possible to use a DSM2 satellite together with the GUI)
• 6 receiver inputs
• 6 high resolution (11-bit) PWM outputs
• Supports all configs up to OKTO with cam-stab support
• 2.5kB RAM
• ATmega32U4 based with Leonardo Bootloader
• 10DOF sensor array
• MPU-6050 (GYRO/ACC)
• HMC-5883L (MAG)
• MS5611-01BA03 (BARO)
• Bluetooth/GPS connector (on bottom; only GPS or DSM2 satellite can be used at one time since the 32U4 only has one UART)
Specs:
Main chip: ATmega32U4
CPU speed: 16MHz
Flash size: 32kB (3.3kB are taken by the Bootloader)
Input: 6 x high-res RX inputs (2 AUX channels)
Output: 6~8 motor outputs (motor 1-6 are 11-bit PWM)
Dimension: 50x50x16mm
Weight: 14g
