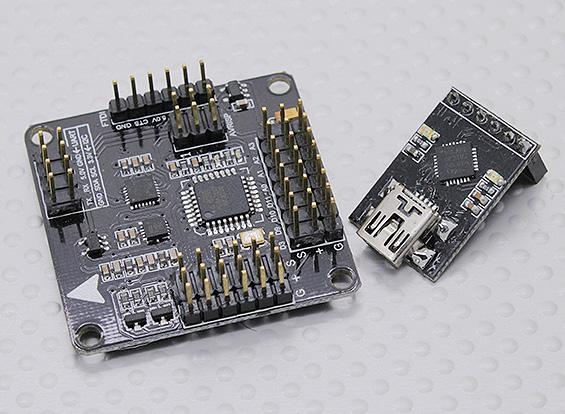

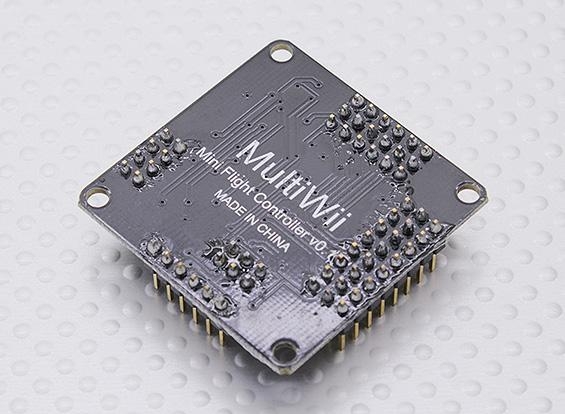

The MultiWii is a gyro/accelerometer based flight controller that is loaded with features. This version of the MultiWii features the ITG-3205 3 axis Mems Gyro, Bosch BMA180 3 axis accelerometer and the ATmega 328P-AU MCU. It also has both an AVRISP header and FTDI Usb interface - covering the best of both worlds. A great small form flight controller with expandability options and full programmability, this device can control just about any type of aircraft.
This is the ideal flight controller for your multi-rotor aircraft.
Features:
• Small size, 35x35mm mounting holes
• 6 input channels for standard receiver and PPM SUM receiver
• Up to 8 motor outputs
• ITG3205 Triple Axis Gyro
• BMA180 Accelerometer
• FTDI/UART TTL socket for debug, upload firmware or LCD display
• I2C socket for extend sensor, I2C LCD/OLED display or CRIUS I2c-GPS NAV board
• Separate 3.3V and 5V LDO voltage regulator
• ATMega 328P-AU Microcontroller
Specs:
Dimensions: 40x40x12mm
Mounting: 35mm X 35mm
Weight: 8.5g
Package content:
MultiWii 328p FC x 1

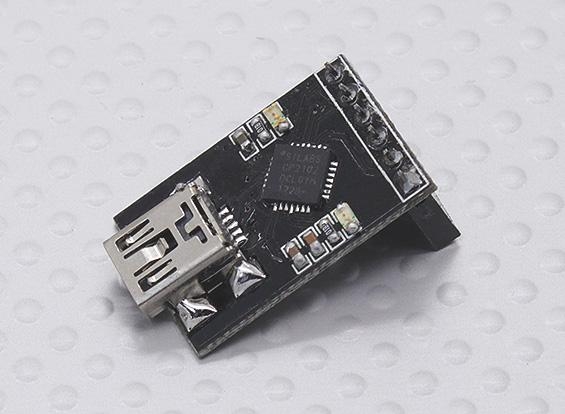

USB interface x 1
Non disp.
