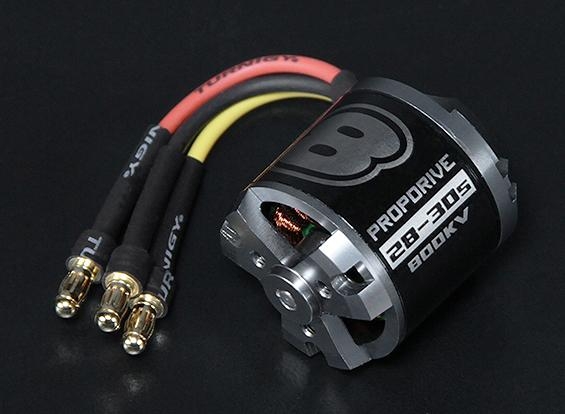

This is a short shaft version NTM 28-30S 800kv brushless outrunner motor. It is built with no external shaft allowing you to easily mount this motor to your multi-rotor frame without the need for any modification.
NTM Prop Drive motors are rock-solid performance outrunners with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test.
Because we design and build these motors completely in-house (from 3D/2D drawing to materials sourcing, machining, balancing, final assembly and dyno) we can completely control production and ensure product consistency from design right through to shipping the product to you. The removal of middle-men has meant we can drive better value to the market and retail these motors at factory(our) prices! All performance figures are real and tested on our own motor dynos.
Our QC engineers check and balance each motor before shipping to the HobbyKing.com warehouse.
Specs:
Model: NTM Prop Drive Series 28-30A 800kv (short shaft version)
Kv: 800rpm/v
Max current: 20A
Max Power: 300W
Shaft: 3mm
Weight: 65g
ESC: 20~30A
Cell count: 3s~6s Lipoly
Bolt holes: 16mm & 19mm
Bolt thread: M3
Connection: 3.5mm Bullet-connector
Prop Tests:
8x4E - 22.2V / 310W / 13.9A / 1.11kg thrust
10x5E - 18.5V / 315W / 17.3A / 1,27kg thrust
11x7E - 14.8V / 260W / 17.8A / 1.05kg thrust
12x6E - 14.8V / 276W / 18.7A / 1.20kg thrust
Note: An accessory pack is available for this motor. Please see the related items below.
