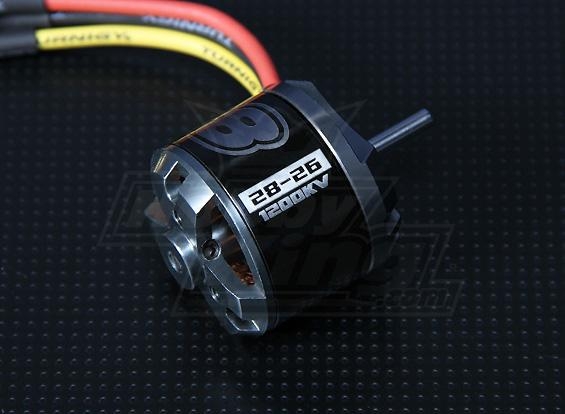

NTM Prop Drive Series 28-26A 1200kv / 250w

NTM Prop Drive motors are rock-solid performance outrunners with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test.

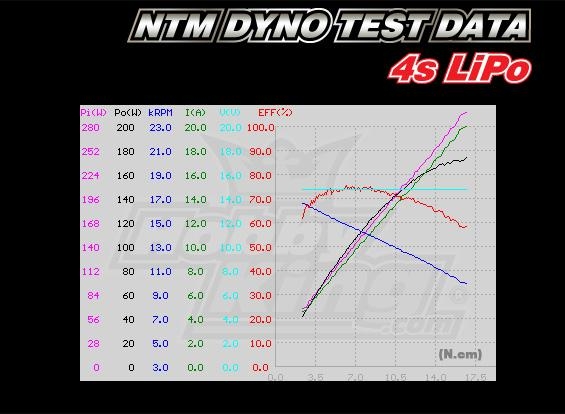

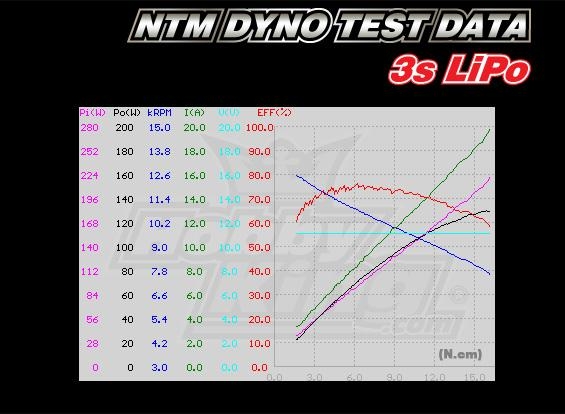

Because we design and build these motors completely in-house (from 3D/2D drawing to materials sourcing, machining, balancing, final assembly and dyno) we can completely control production and ensure product consistency from design right through to shipping the product to you. The removal of middle-men has meant we can drive better value to the market and retail these motors at factory(our) prices! All performance figures are real and tested on our own motor dynos.
Our QC engineers check and balance each motor before shipping to the HobbyKing.com warehouse.

Specs:
Model: NTM Prop Drive Series 28-26A 1200kv
Kv: 1200rpm/v
Max current: 18A
Max Power:200W @ 12v (3S) / 250W @ 15v (4S)
Shaft: 3mm
Weight: 57.6g
ESC: 20A
Cell count: 3s~4s Lipoly
Bolt holes: 16mm & 19mm
Bolt thread: M3
Connection: 3.5mm Bullet-connector

Prop Tests:
7x6E - 11.1v - 90W - 8A
7x6E - 14.8v - 192W - 13A
8x4E - 11.1v - 100W - 9A
8x4E - 14.8v - 222W - 15A
8x6E - 11.1v - 145w - 13A

Note: An accessory pack is available for this motor. Please see the related items below.
