NTM Prop Drive motors are rock-solid performance outrunners with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test.

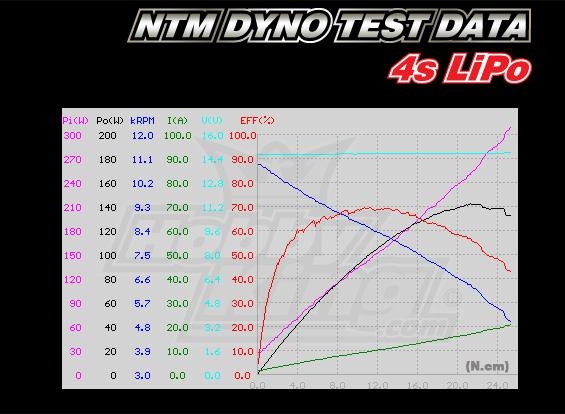

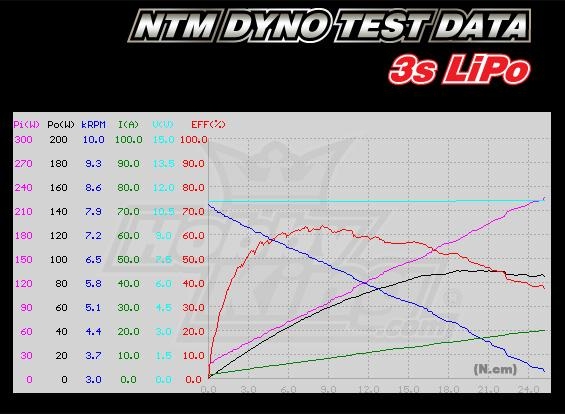

Because we design and build these motors completely in-house (from 3D/2D drawing to materials sourcing, machining, balancing, final assembly and dyno) we can completely control production and ensure product consistency from design right through to shipping the product to you. The removal of middle-men has meant we can drive better value to the market and retail these motors at factory(our) prices! All performance figures are real and tested on our own motor dynos.
Perfect Kv and size for quadcopters!
Our QC engineers check and balance each motor before shipping to the HobbyKing.com warehouse.
Specs:

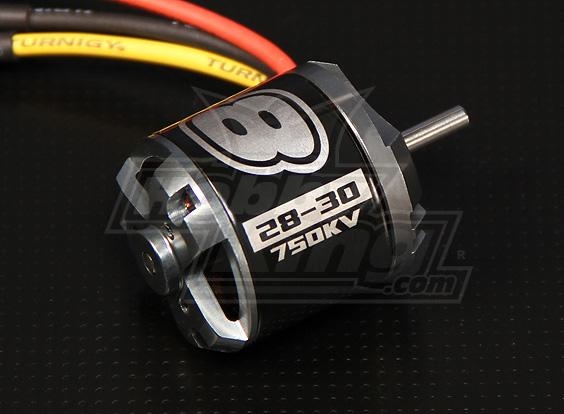

Model: NTM Prop Drive Series 28-30A 750kv
Kv: 750rpm/v
Max current: 20A
Max Power: 120W @ 12v (3S) / 140W @ 15v (4S)
Shaft: 3mm
Weight: 67.1g
ESC: 25A
Cell count: 3s~4s Lipoly
Front Mounting Hole Distance: 19mm or 16mm
Connection: 3.5mm Bullet-connector
Suggested Prop: Prop test data coming soon!
