NTM motors are rock-solid performance outrunners with tight windings, quality bearings, correctly rated magnets, balanced stator and flux rings plus they are QC checked at 14 points, from material processing all the way through to final dyno test.
Because we design and build these motors completely in-house (from 3D/2D drawing to materials sourcing, machining, balancing, final assembly and dyno) we can completely control production and ensure product consistency from design right through to shipping the product to you. The removal of middle-men has meant we can drive better value to the market and retail these motors at factory(our) prices! All performance figures are real and tested on our own motor dynos.
Our QC engineer checks and balances each motor before shipping to the HobbyKing.com warehouse.
Specs:

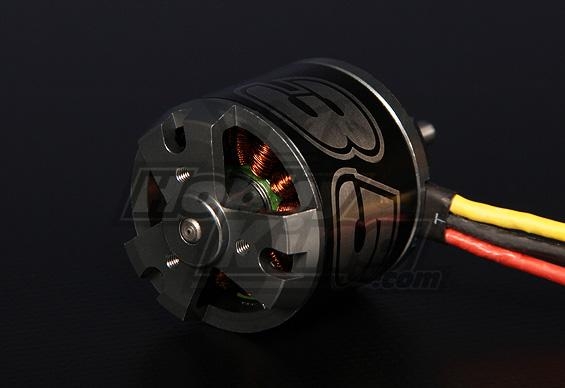

Model: NTM 35-36A 1400
Kv: 1400rpm/v
Turns: 7
Max current: 55A
Max Power: 550W
Shaft: 4mm
Weight: 117g
ESC: 60A
Cell count: 3s~4s Lipoly
Front Mounting Hole Distance: 25mm or 19mm
Connection: 3.5mm Bullet-connector
Suggested Prop: 8x4 ~ 11x5.5

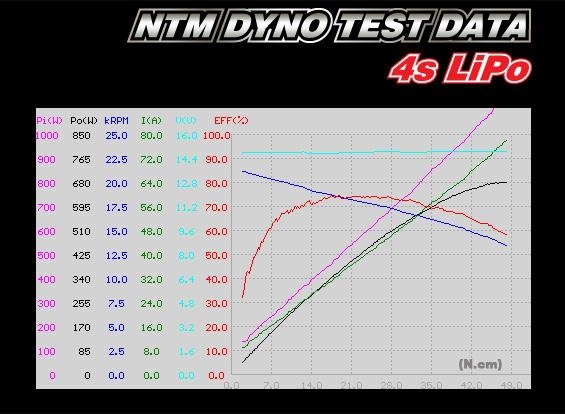

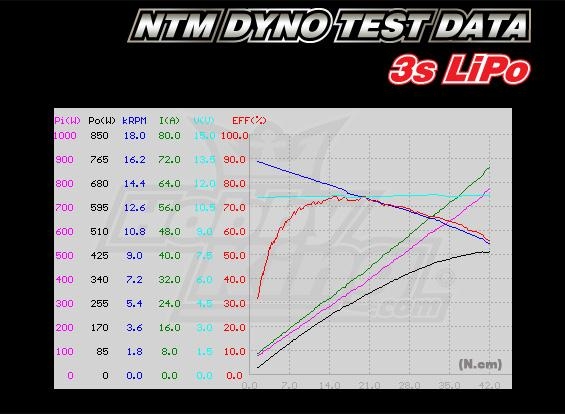

Prop Tests:
8x4 - 14.8v - 621W - 42A
8x4 - 11.1v - 277W - 25A
9x6 - 11.1v - 432W - 39A
10x5 - 11.1v -510W - 46A
11x5.5 - 11.1v - 543w - 49A
Non disp.
