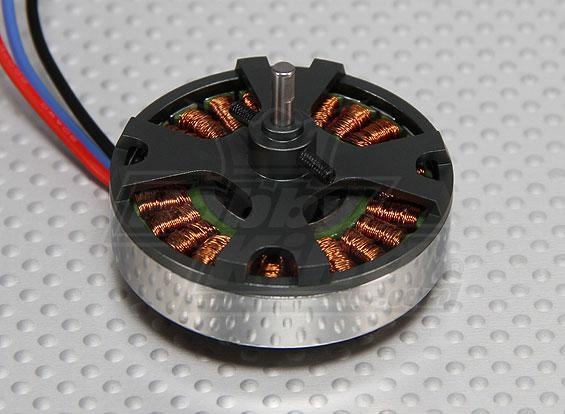

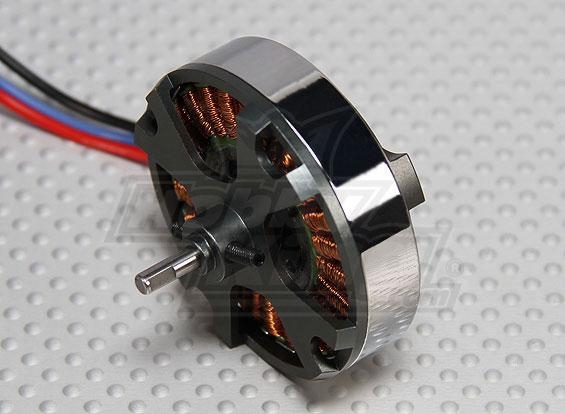

If youre serious about your quad-copters performance, then look no further than the NX4008.
Built with high-end 45SH magnets, a high pole count and custom motor mount, this quad-motor is designed purely for multi-rotor applications.

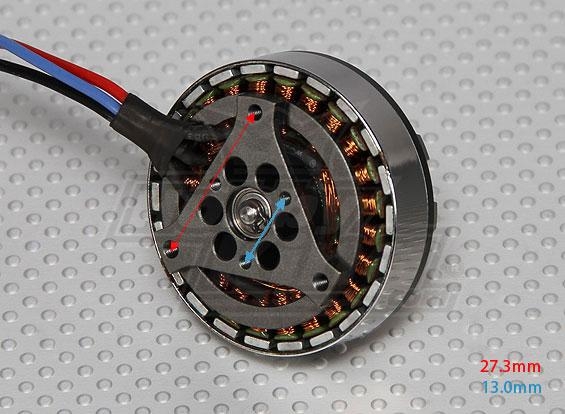

The NX-4008 includes a built in prop saver for GWS style props and a built in aluminum mount for quick and easy installation on your quadcopter frame.
This is not a modfied aeroplane outrunner. It was designed from the ground up for quad copters.
Specs
Kv: 620rpm/v
Resistance: 56ohm
Idle Current: 0.8A
Can size: 45mm
Can Length: 14mm
Shaft: 3mm (Includes Prop saver mount for GWS style props)
Rated Amps: 18A
Rated Watts: 180W
Weight: 79g
Cell count: 3~4S Lipoly
Prop Test Data:
GWS 9050 11.5V 4.5A 51.75W 407g 6690rmp
GWS 9050 15V 7A 105W 665g 8512rmp
GWS 1047 11.5V 8.3A 95.45W 700g 6250rmp
GWS 1047 15V 12.9A 193.5W 1129g 7810rmp
GWS 1060 11.5V 6.5A 74.75W 545g 6440rmp
GWS 1060 15V 10.1A 151.5W 855g 8109rmp
GWS 1147 15V 17A 255W 1431g 7310rmp
GWS 1060 11.5V 10.9A 125.35W 910g 5905rmp
