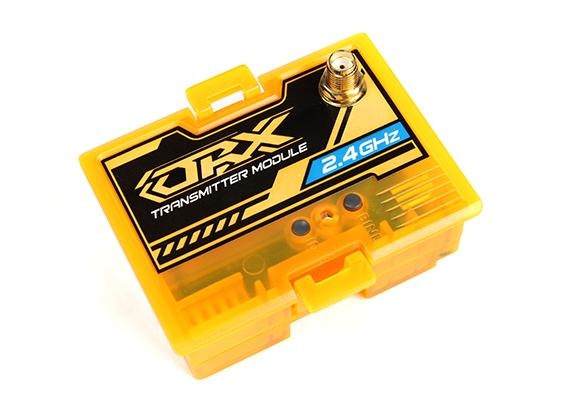

The OrangeRX 2.4Ghz transmitter module offers a simple, convenient and inexpensive way to utilize your module-based JR/Turnigy/Taranis compatible transmitter to enable it to be used with any DSM2 and DSMX type receivers.
Unlike standard modules which have a fixed protocol, this unit switches automatically between DSM2 (1024/22ms, 2048/11ms) and DSMX (22ms, 11ms) during the binding process. It is also manually selectable using a long press of the bind button.
This version also has a major firmware change that allows for the module to work with multiple receivers without rebinding.
Simply remove your existing module, plug in the OrangeRX module and you are ready to bind to any DSMX, DSM2 receivers.
Features:
• Works with any JR/Turnigy/Taranis compatible module-based transmitter
• Auto and manual mode switching: DSM2 1024/22ms, DSM2 2048/11ms, DSMX 22ms, DSMX 11ms
• Easy to access bind button
• Easy to use ID button
• Range check mode (1mW)
• Full range system
• Accepts PPM from 4 - 12 channels
• Outputs from 4 - 12 channels according to PPM provided
• Low current consumption
Specs:
Compatibility: JR style 5 pin module-based transmitters (JR/Turnigy/Taranis compatible) (Not compatible with Turnigy 9X)
2.4Ghz protocol: DSMX / DSM2
Input Voltage: 6 - 18VDC
Output Power: -18dBm
Current Consumption: 100mA max
Radio Type: Full range system

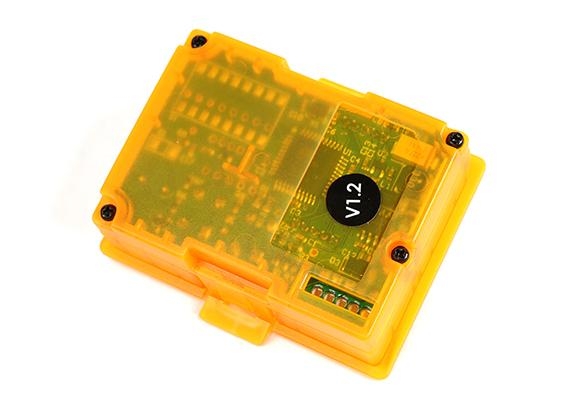

Firmware version: 1.2

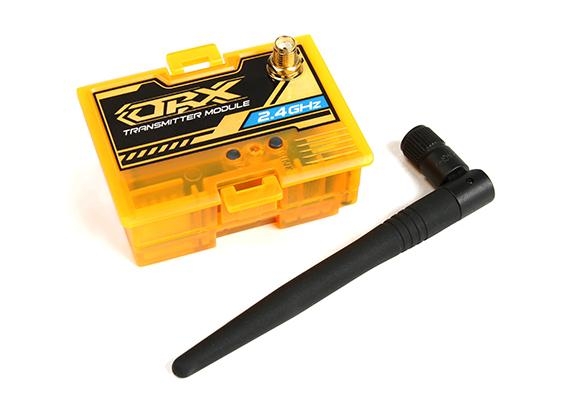

Includes:
OrangeRX DSMX/DSM2/Devo Compatible 2.4Ghz transmitter module
2.4Ghz antenna
For manual please see files tab below.
Note:
OrangeRX Modules use a unique Global ID for binding. Incase of binding issues with other branded receivers press the "Change ID" button on module to change the Module ID to another unique value reserved for that module. There are over 4 billion unique ID's assigned to OrangeRx modules.
Note:
This is not a Spektrum DSM2/X, Walkera product, neither is it a copy of a Spektrum DSM2/DSMX/Walkera product. The Spektrum and DSM2 / DSMX brand is a trademark of Horizon Hobbies USA. OrangeRX products are not black market or fake Spektrum products. OrangeRx quality is guaranteed.
