The OrangeRX switchable 2.4Ghz transmitter module offers a simple, convenient and inexpensive way to utilize your module-based JR/Turnigy compatible transmitter. Unlike standard modules which have a fixed protocol this unit can be switched between DSM2 (1024/22ms, 2048/11ms), DSMX (22ms, 11ms) or Walkera compatible protocols.
The module has 4 selectable power output levels. Simply remove your existing module, plug in the OrangeRX switchable module and you are ready to bind to any DSMX, DSM2 or Walkera compatible receivers. Another feature of this superb module is that it has selectable channel mapping for either AETR or TAER.
Features:
• Works with any JR/Turnigy compatible module-based transmitter
• 5 switchable modes: DSM2 1024/22ms, DSM2 2048/11ms, DSMX 22ms, DSMX 11ms, Walkera
• 4 switch selectable power outputs
• Easy to access bind button
• Range check mode
• Selectable channel mapping
Specs:
Compatibility: Standard JR style 5 pin module-based transmitters (JR/Turnigy compatible)
2.4Ghz protocol: DSMX / DSM2 / Walkera Compatible
Input Voltage: 6 - 18VDC
Radio Type: Full range system
Includes:

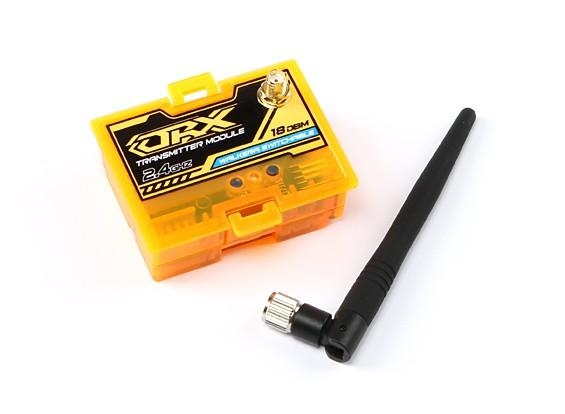

OrangeRX DSMX/DSM2/Devo Compatible 2.4Ghz transmitter module
2.4Ghz antenna
Please Note:
OrangeRX Modules use a unique Global ID for binding. In case of binding issues with other branded receivers press the "Change ID" button on module to change the Module ID to another unique value reserved for that module. There are over 4 billion unique ID's assigned to OrangeRx modules.
Please Note:
This is not a Spektrum DSM2/X, Walkera product, neither is it a copy of a Spektrum DSM2/DSMX/Walkera product. The Spektrum and DSM2 / DSMX brand is a trademark of Horizon Hobbies USA. OrangeRX products are not black market or fake Spektrum products. OrangeRx quality is guaranteed.
