Compatible with Futaba FASST receivers: TM7, TM8, TM10, TM14 + more.

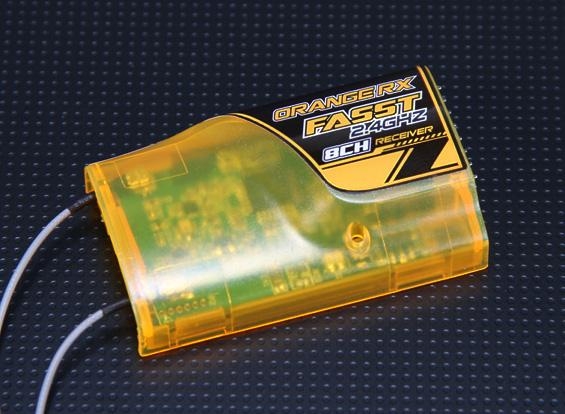

The OrangeRx 8ch is only 9.7g in weight and 30x45x10mm in size. Great for small planes, helis, parkflyers or even medium sized sport planes. These receivers can be used in pairs to create a satellite system with 14 channels.
Key features.
Light weight 9.7g
Compatible with FASST aircraft radio and module systems
8 Channels
Compact design 30x45x10mm
Twin antenna for diversity and long range.
Input voltage: 4~9.8V
Specified Range: 1.5km+
Resolution: 3072
Latency: 22ms
Failsafe
Up to 14 channels in satellite mode (requires 2 TFR8-S receivers)
Included.
OrangeRx Futaba FASST 2.4Ghz Compatible 8Ch receiver
2 x Jumper Plugs
All OrangeRx receivers come with a 12 month warranty.
NOTE* This is not a Futaba receiver, nor is it a copy of a Futaba receiver.
Futaba and FASST are trademarks of Futaba Co (JP).
Note* Disable failsafe on transmitter, otherwise you will experience servo jitter.

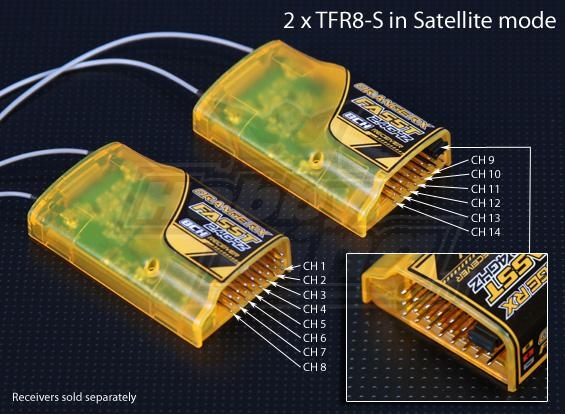

To use satellite mode you must bind both receivers to your transmitter then short the two top pins on CH1 and CH2 as show in the picture above.
